Louis@lithmachine.comLab 30T 40T 60T Manual Electric Automatic Hydraulic Press And Automatic Fluorescent Press

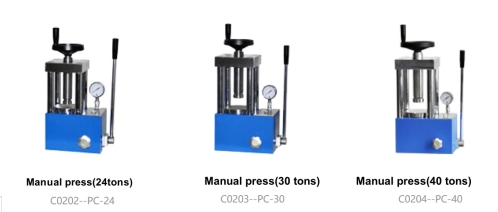

Manual press + boric acid mold
|
Model:PC-24 |
Model number:PC-30 |
Model:PC-40 |
|
Pressure 0-24 tons |
Pressure 0-30 tons |
Pressure 0-40 tons |
|
Cylinder diameter 95mm |
Cylinder diameter 110mm |
Cylinder diameter 130mm |
|
Working space 80*150mm |
Working space 92*160mm |
Working space 106*185mm |
|
Overall dimensions 245*175*415mm |
Overall dimensions 275*195*420mm |
Overall dimensions 295*215*500mm |
|
Weight 42kg |
Weight 56g |
Weight 75kg |
Electric press + boric acid mold
|
Model:PCD-30S |
Model number:PCD-40S |
Model:PVD-60S |
|
Pressure 0-30 tons |
Pressure 0-40 tons |
Pressure 0-60 tons |
|
Cylinder diameter 110mm |
Cylinder diameter 130mm |
Cylinder diameter 150mm |
|
Working space 92*160mm |
Working space 115*185mm |
Working space 186*220mm |
|
Overall dimensions 275*435*420mm |
Overall dimensions 295*455*500mm |
Overall dimensions 405*470*565mm |
|
Weight 72kg |
Weight 92g |
Weight 140kg |
Automatic press + boric acid mold
|
Model:PP-30S |
Model number:PP-40S |
Model:PP-60S |
|
Pressure 0-30 tons |
Pressure 0-40 tons |
Pressure 0-60 tons |
|
Cylinder diameter 110mm |
Cylinder diameter 130mm |
Cylinder diameter 150mm |
|
Working space 140*160mm |
Working space 175*180mm |
Working space 186*220mm |
|
Overall dimensions 230*390*420mm |
Overall dimensions 280*460*550mm |
Dimensions 300*520*580mm |
|
Weight 95kg |
Weight 150g |
Weight 180kg |
Automatic fluorescent press + built-in boric acid mold
|
Model:PP-30X |
Model number:PP-40X |
Model:PP-60X |
|
Pressure 0-30 tons |
Pressure 0-40 tons |
Pressure 0-60 tons |
|
Cylinder diameter 110mm |
Cylinder diameter 130mm |
Cylinder diameter 150mm |
|
Built-in boric acid mold |
Built-in boric acid mold |
Built-in boric acid mold |
|
Overall dimensions 250*390*460mm |
Overall dimensions 280*460*550mm |
Dimensions 300*520*580mm |
|
Weight 120kg |
Weight 150g |
Weight 180kg |
|
Model: PMP Boric acid mold |
Model number; PMG steel ring mold |
|
Outer diameter 40mm |
Outer diameter 40mm |
|
Inner diameter 34mm |
Inner diameter 32mm |
|
Consumable boric acid |
Consumable steel ring |
|
Overall dimensions Diameter 73mm*130mm |
Overall dimensions Diameter 73mm*130mm |
|
Weight 2kg |
Weight 2kg |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
