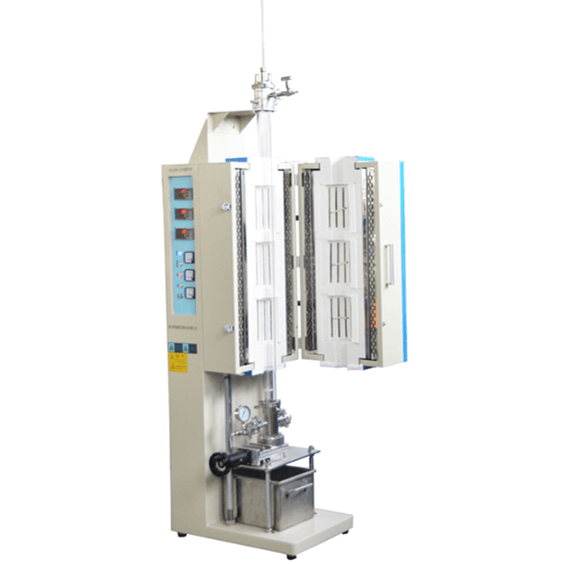

Louis@lithmachine.comLab 1200-1200-1200 Three Zones Vertical Quenching Tube Hardening Furnace
Detailed parameter information
|
Model |
VTL1200-1200-1200-I |
VTL1200-1200-1200-II |
VTL1200-1200-1200-III |
|
Power |
5.4 KW |
5.4 KW |
5.4 KW |
|
Tube size |
Dia 60(OD) X1300mm |
Dia 80(OD) X1300mm |
Dia 100(OD) X1300mm |
|
Supply voltage |
220V |
||
|
Phase |
single phase |
||
|
Heating element |
Imported resistance wire from Kanthal A1, Sweden (resistance wire can be guaranteed for 2 years) |
||
|
Control mode |
Use Yudian program temperature control instrument (standard) 1. 30-segment program temperature control intelligent PID adjustment. 2. With over-temperature protection, the electric furnace heating circuit will be automatically cut off when the temperature is over-temperature or when the couple is broken. ON, the ON light on the panel is off, the OFF light is on, and the electric furnace is limitedly protected). 3. With 485 communication interface (standard with optional software) 4. It has a power failure protection function, that is, when the furnace is powered on after the power is turned off, the program does not start from the initial temperature, but starts from the furnace temperature when the power is turned off. 5.The meter has the function of temperature self-tuning
(replacement of imported instruments requires additional payment and purchase)
FP93 control instrument(SHIMADEN) EUROTHERM touch screen |
||
|
Break couple protection and display |
Yes |
||
|
Over-temperature protection |
Yes |
||
|
Overcurrent protection |
Yes |
||
|
Control precision |
+/- 1 ℃ |
||
|
Flip-flop |
Phase-shifted trigger |
||
|
Electric appliance |
Zhejiang chint |
||
|
Silicon controlled |
106/16E SEMIKRON |
||
|
Max. temp |
1200 ℃ |
||
|
Rated temperature |
1150 ℃ |
||
|
Heating rate |
≤30 ℃/ Min (can be modified as required) |
||
|
Recommended heating rate |
≤15℃/ Min |
||
|
Thermocouple Type |
K |
||
|
Heating length |
205mm+205mm+205mm |
||
|
Electrical certification |
CE |
||
|
Ambient surface temperature |
≤45℃ |
||
|
Vacuum seal flange and valve |
1. A stainless steel sealing flange and stainless steel needle valve are installed on the top of the furnace body. 2. A plug-in valve, a non-mechanical pressure gauge and a KF-25 vacuum interface are used to connect the vacuum pump at the bottom of the furnace body. 3. Vacuum degree: The vacuum degree of the mechanical pump can reach below 1Pa. If you want to obtain a higher vacuum degree, you can choose a domestic or imported high vacuum unit. The vacuum degree can reach 10 ^ -3Pa. Optional: The following accessories increase vacuum efficiency. 4. KF25 stainless steel bellows, KF25 quick remover clamp. 5. Optional anti-corrosion digital vacuum gauge, its measurement range is 3.8x10-5 to 1125Torr. No coefficient conversion is required for different types of measurement gases. |
||
|
Quenching container |
1. A stainless steel box for holding the quenching liquid is fixed at the bottom of the furnace tube. 2. A large manual plug valve is installed between the bottom of the furnace tube and the liquid box. 3. Option one: At the top of the flange is installed an electromagnet sample hanging device that can withstand a maximum of 1000g. As shown in Figure 1, the sample is hung on the hook through the hanging wire. Drop into the quenching box together, as shown in Figure 3. Before releasing the sample, 5 PSI of argon must be flushed in and the manual flapper valve at the bottom of the furnace tube opened. Fig. 4 is a suspension wire.
Pic 1 Pic 2 Pic 3 Pic 4 4. Option two: A quartz rod with a gondola is worn from the middle of the upper flange, and the gondola is filled with materials. The three temperature zones can be set to different temperatures, and the material can be quenched in different temperature zones by moving the quartz rod up and down. The quartz rod is long enough to put the contents of the gondola into the quenching liquid box. |
||
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
