ItemNo :
DM-GCMMOQ :
1Lead Date :
15 daysWarranty:
2yearsDelivery Time:
5 daysEmail :

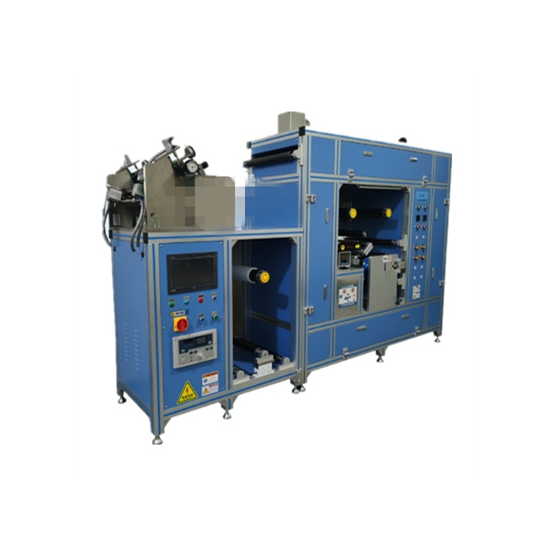

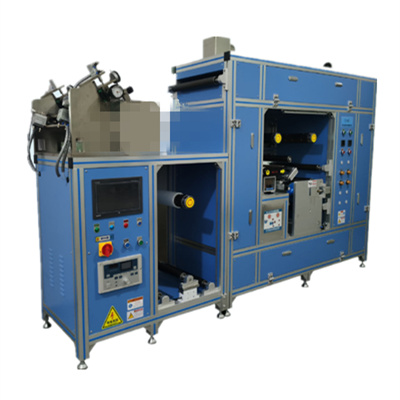

Louis@lithmachine.comGraphene Coating Machine with High Efficiency Production

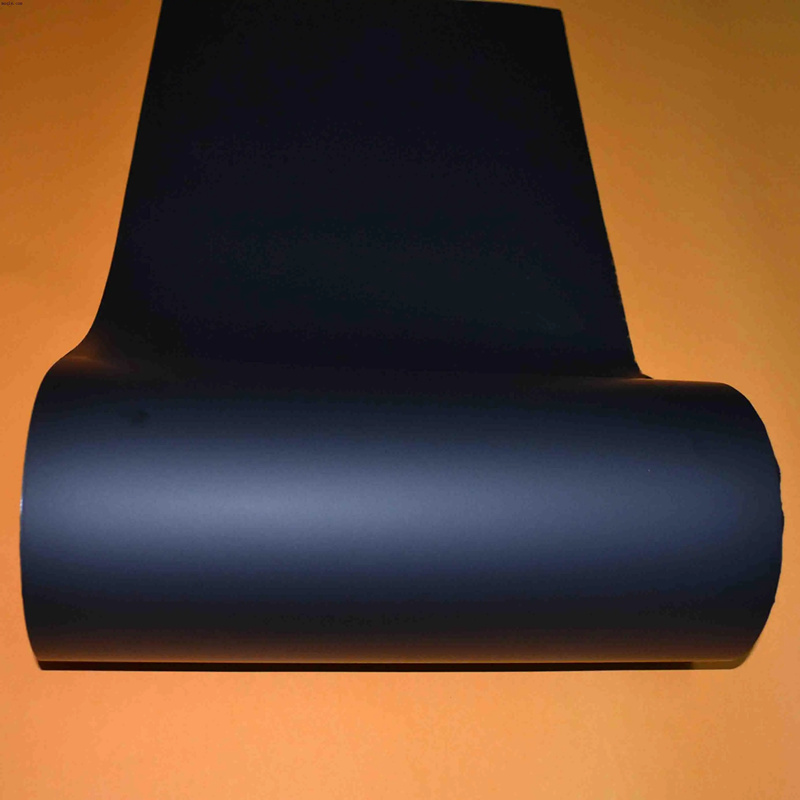

It is applicable to the precise coating production of high thermal conductivity graphene heat conduction film and graphene heat conduction film in the fields of smart phones, tablet computers, smart VR, planetary circuits, electrothermal painting, floor heating film, etc. The coating machine has better price and higher production efficiency
Specification
Control system |
Independent research and development system |
Uniform coating |
<5% |
Coating width |
Effective coating width100-380mm |
Coating thickness |
0.005-3MM(wet film) |
Coating typoe |
Doctor blade |
Tension control |
Automatic tension adjustment (according to the membrane tension required to adjust) |
Oven length |
10meters(Back to type) |
Dryingoven temp |
Normal temperature ~120 degrees (can be segmented constant temperature) |
Heating method |
Electrical heating |
Oven wind force |
Adjustable |
Deviation correcting device |
Automatic rectifying of winding |
Exhaust air system |
Suction is adjustable |
Production speed |
1-20 m/min |
Equipment air pressure |
6 KG/cm2 |
Power supply |
380V 50Hz |
Equipment power |
10KW |
Dimension |
2700*1300*1800mm |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
