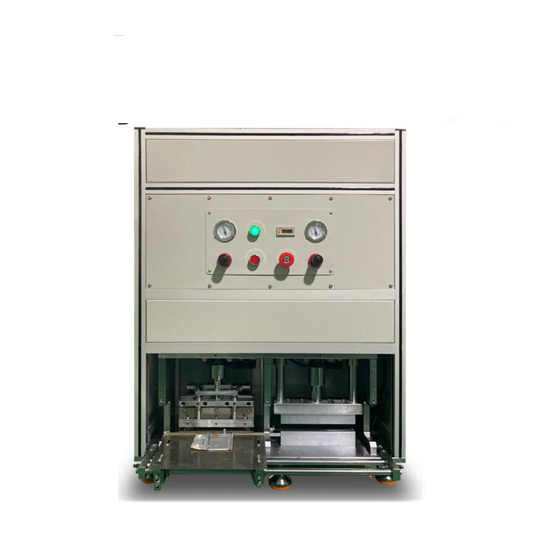

Battery Tab Shaping Pressing And Cutting Machine For Prismatic Cell Research
1. 1 Function: this is special design for cut and shaping press of stacking cell after tab welded.

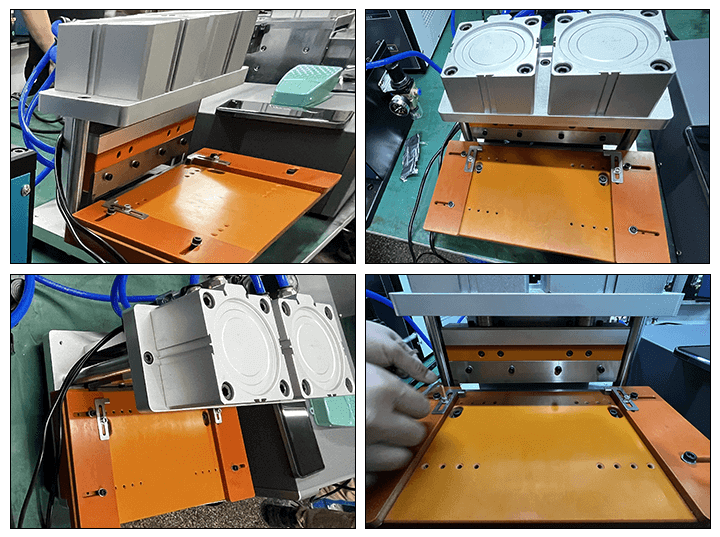

1.2 After placing the tab weld cell in place, step on the foot switch, the cylinder drives the upper pressure block and the knife to move downwards to cut off the excess stacking material and tabs, and then move the station to press the remaining tabs to flatten.
Technical parameter
|
Compressed air |
0.5-0.8 MPa |
|
|
Cutting pressure |
≤1000Kgf |
|
|
Cutting strock |
15mm |
|
|
Cutter length |
200mm |
|
|
Press pressure |
≤1000Kgf |
|
|
Working speed |
300-500 times/hour, accoridng to real process parameter |
|
|
Equipment weight |
About 140kg |
|
|
Appearance Colour |
According to customer requirement, customer provide colour plate |
|
|
Voltage |
Single-phase: 220V/60Hz |
|
|
Power |
100W |
|
|
Suitable battery width |
<225mm( this is standard machine, will custom accoridng to customer’s real battery dimention) |
|
|
Process performance |
1. Manual feeding and unloading; 2. Manual conversion between cutting and flattening; 3. Manual or foot control action; 4. With automatic counting function; 5. There are safety protection door panels around. |
|
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
