ItemNo :
LITH-AT526MOQ :
1Color :
optionalPort :
Xiamen PortCompliance:
CEWarranty:
2 yearsDelivery Time:
5 daysEmail :

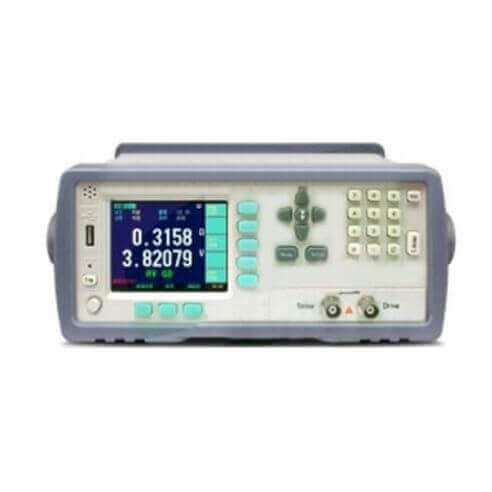

Louis@lithmachine.comBattery Impedance Tester Internal Resistance Tester For Supercapacitor ESR Testing
Features
For Alkaline batteries, lead-acid batteries, lithium ion battery, button battery and supercapacitor ESR Testing
LITH-AT526 is a new design battery tester with high precision and stability. Adopt high performance ARM microprocessor control.3.5 inch LCD English display, With more sample operation.it’s a high performance intelligent instruments that widely used in contact resistance, battery voltage and battery resistance test.New improved sampling circuit, can measure any kind of battery.
Specifications
|
Model |
LITH-AT526 |
|
Test parameters |
AC resistance, DC voltage |
|
Basic accuracy |
Resistance: 0.2% Voltage: 0.01% |
|
Measuring range |
Resistance: 0.001mΩ ~33.000kΩ voltage: 0.00001V~120.000VDC |
|
Signal source |
AC 1kHz, test current: <150ma |
|
Range |
Seven range auto and manual |
|
Test speed |
145 times/second, 30 times/second, 10 times /second, 1 times/second |
|
Display results |
Direct reading,ΔABS,Δ%,θ,to sorting results |
|
Correction |
Full range short circuit reset |
|
Comparator |
Optional 18 sorting RHI/RNG/RLO output VHI/VNG/VLO outputThe absolute value of tolerance ±TOL Sorting percentage tolerance TOL sorting Sequential sorting |
|
Trigger |
Internal trigger, manual trigger, external trigger and remote trigger |
|
Interface |
RS-232C interface handler interface (PLC interface) |
|
power requirement |
Voltage: 195vac ~ 245vac frequency: 50Hz power: maximum 15va |
|
Size and weight |
External dimensions (mm):264 (W) x107 (high) x350 (deep) weight: 4kg |
|
Appendix |
ATL502 Kelvin test line,ATL108/ RS232 interface cable |
|
Others |
Test line damage detection , color TFT-LCD display, keyboard lock and data hold function, internal flash memory and disk data recording |
Performance characteristic
5 Measurement of super capacitor equivalent resistance (ESR)

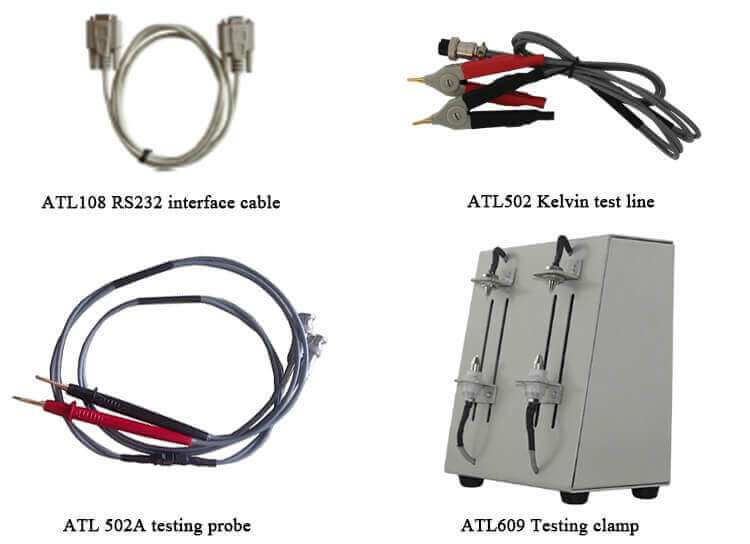

Testing Clamps For AT526 battery voltage and resistance tester

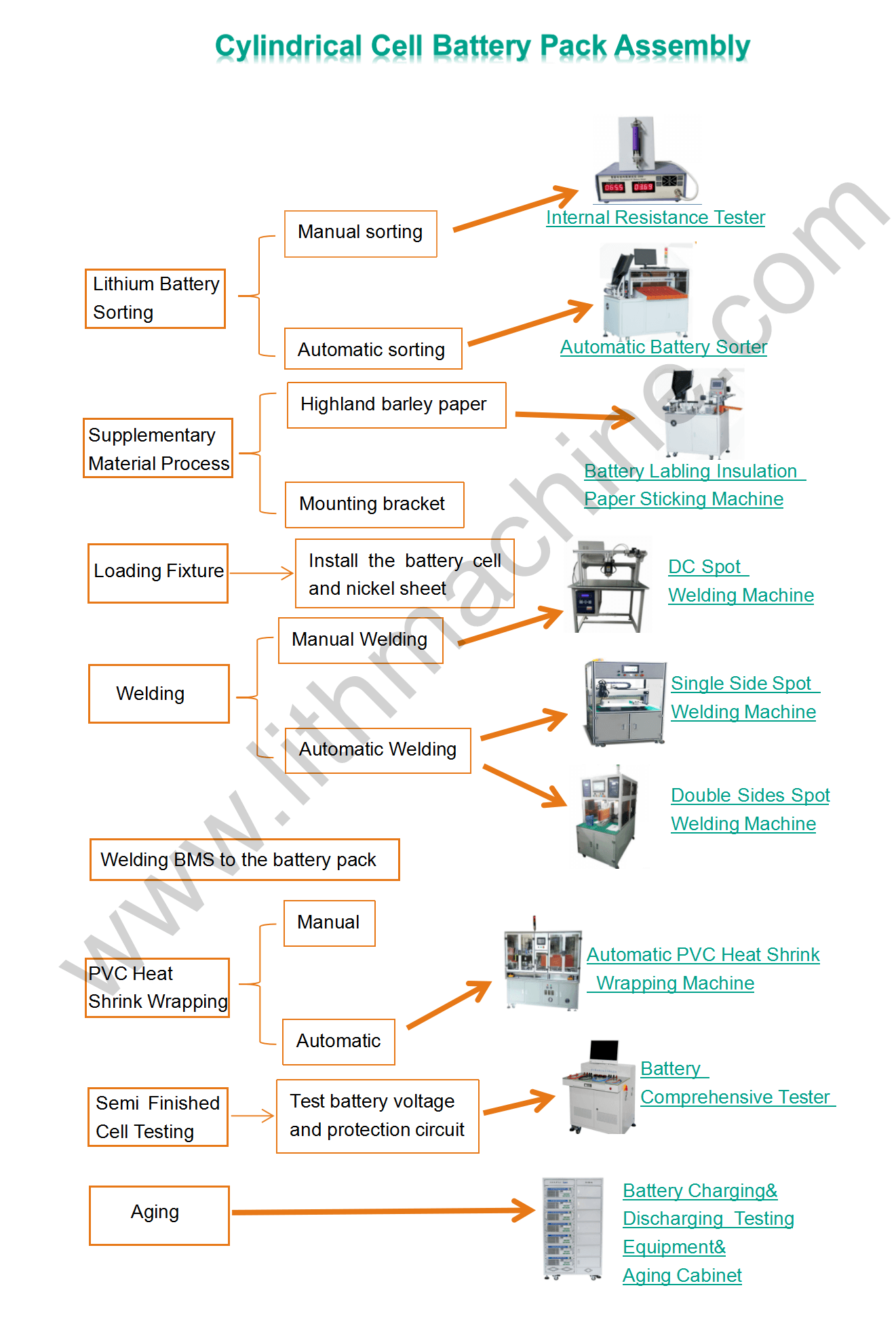

Related Machine
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
