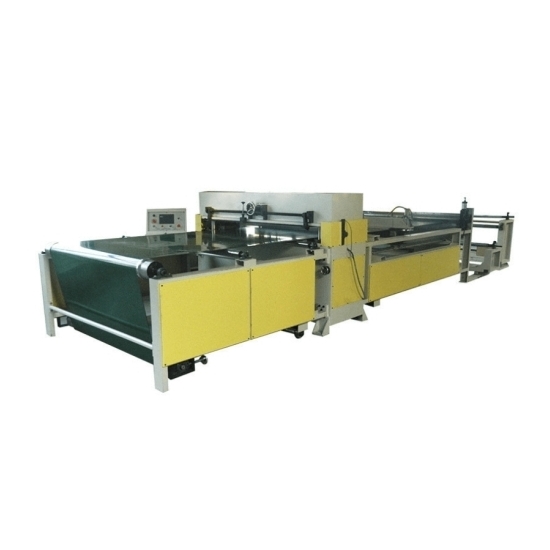

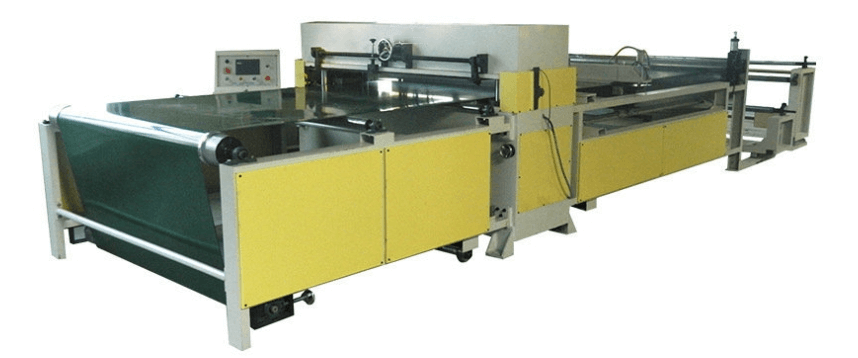

Louis@lithmachine.comAutomatic Leather Belt Type Die Cutting Slitting Machine
Uses and features
Automatic belt cutting machine is suitable for rolling soft materials automotive interior industry supplies foot mat, seat, ceiling, steering wheel, loading material cushion leather, floor tile, abrasive abrasive industry sandpaper, polishing, polishing wheel, ball football, volleyball and other industries of large-scale conveyor belt feeding automatic continuous operation cutting equipment.
1, double cylinder, precision four-column double connecting rod automatic balance four-column block fine-tuning mechanism, hydraulic system control, to ensure the cutting speed and accuracy of the machine, all sliding connection parts using the history of oil supply automatic lubrication device, so that wear is reduced to a low.
2. When the cutting head is pressed down, it automatically slows down before contacting the cutter 10mm, so that there is no dimensional error between the top layer and the bottom layer when cutting multi-layer materials.
3, the conveying part is controlled by PLC, the servo motor drives the material input from one side of the machine, the cutter die is directly cut on the conveyor belt, after die cutting, output from the other side to ensure accurate feeding and smooth running; And the feeding length can be easily adjusted through the touch screen, fault display information, convenient machine maintenance.
4. Servo motor feed and receive material so that the alignment accuracy is controlled at +-0.2mm.
5, unique mold setting structure, with the cutting tool and cutting height, so that the stroke adjustment is simple and accurate
6, the central automatic lubrication system to ensure machine accuracy and improve the durability of the machine.
7, the fixed clamping device of the cutter die, the replacement of the cutter die is convenient and fast.
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
