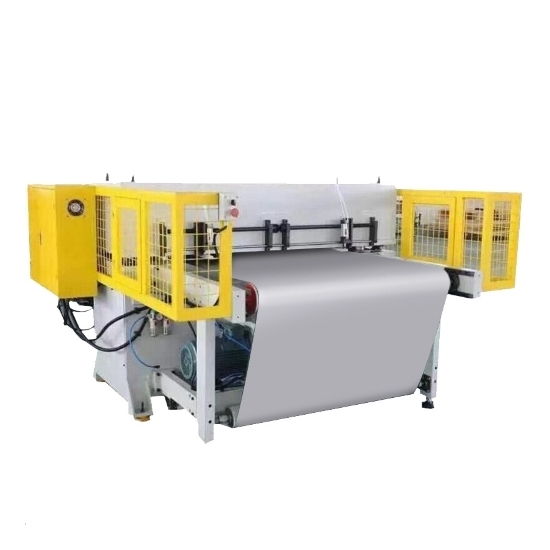

Louis@lithmachine.com600KN Foam Conveyor Belt Automatic Die Cutting Cutter Machine
Application range:
Mask, shoes, foam, blanket, leather, Throw pillows, phone cases, etc
Product Introduction:
Conveying the feeding part
1, This part is composed of decelerating mechanism, synchronous belt transmission device, pneumatic clamping device, conveyor belt and tensioning mechanism
2, the machine adopts conveyor belt feeding, pneumatic clamping, so that the material is not easy to offset:
3, using servo motor drive, synchronous belt drive longitudinal feeding, feeding length can be directly input on the touch screen
Cutting host
1, the main machine is composed of four-column guide mechanism, hydraulic part, and frame;
2, the punch is equipped with an automatic tool clamping device, using the tension of four cylinders to clamp the tool, the tool will not move, the replacement of the tool is convenient and quick
3, the whole four-column accurate guide, precision double crank balance, hydraulic drive; Each moving part adopts the central automatic lubrication system to ensure the service life and blanking accuracy of the machine
4, the specially designed oil pressure system, relying on the weight of the pressure plate to achieve rapid decline, automatic pressure slow cutting after pressing the material, so that the specifications between the upper and lower layers of the material are consistent
5, the use of flywheel energy storage to achieve high pressure blanking, saving energy, and no oil temperature rise concerns:
6, the unique stroke setting mechanism with the tool die to automatically set the height of the cutting tool, so that the punching depth adjustment is convenient and accurate
Technical parameters:
|
Maximum blanking force |
600KN |
|
Table area |
1250*1250 mm |
|
Tension distance |
50-200 mm |
|
Stroke adjustment range |
5-150 mm |
|
Applicable material width |
≤1250 mm |
|
Main motor power |
5.5 KW |
|
Feed servo motor power |
2 KW |
|
Micromotion to adjust motor power |
0.37 KW |
|
Hydraulic system working pressure |
≤25 MPa |
|
Air source |
0.5-0.8 MPa |
|
Air consumption |
0.2m3/min |
|
Power phase |
3 phase 380V/50Hz |
|
Gross power |
8 KW |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
