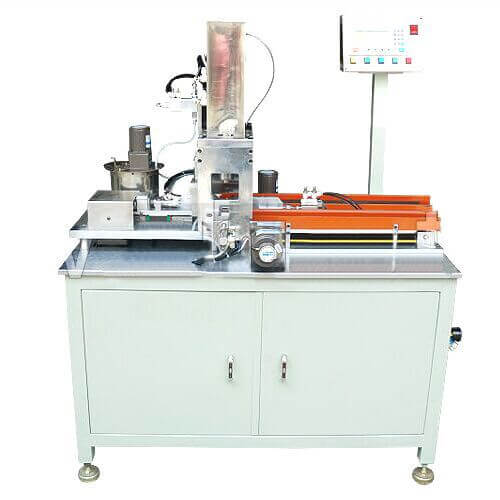

Automatic Grooving Machine Beading Machine For Batch Processing Of Cylindrical Battery Automatic Grooving Machine Beading Machine For Batch Processing Of Cylindrical Battery

Automatic Grooving Machine Beading Machine For Batch Processing Of Cylindrical Battery

  • ItemNo :

    LITH-grooving003
  • MOQ :

    1
  • Compliance:

    CE
  • Warranty:

    2 years
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details

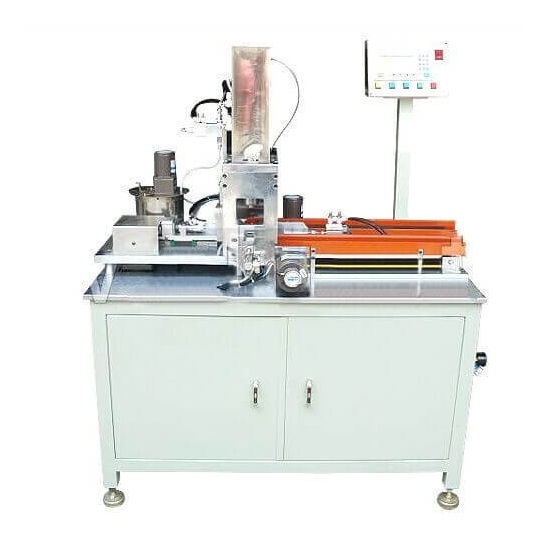

Automatic Grooving Machine Beading Machine For Batch Processing Of Cylindrical Battery



It is an auto grooving machine for cylindrical battery cases. It provides a continues workflow for case batch loading - neck grooving - case unloading without dedicated labor.


Advanced Features:

·        Efficient batch loading/unloading mechanism with case feeding conveyor

·        Horizontally positioned grooving blade ensures the most stable and accurate grooving

·        Micrometer assisted grooving depth & height adjustment

·        Ability to compensate the axial deformation of a cylindrical casing

·        User-friendly human-machine interface with PLC touch screen control

·        Floor-Stand enclosure with transparent front & side openable windows allow clear process monitoring and adjustment



Specifications:

Working Voltage

110/220V AC, 50/60Hz

Max. Power Consumption

1KW

Air Pressure

0.5 MPa~0.8Mpa is required

Compatibility



Standard grooving capability for 18650 case
Note: CR123 / 18650 / 26650 / 32650 / AA is available upon request, please contact us for more details.

Control



User-friendly HMI with PLC touch screen control ensures easy program setup

Grooving Dimensions



Micrometer assisted grooving depth & height adjustment

·         Depth: 1 - 2.0 mm

·         Width: 1 - 1.5 mm

Grooving Accuracy

+/- 0.1 mm

Grooving Blade Life Span

>1 million times

Grooving Force

6kgf/cm^2

Compression Ratio

Percentage in height: 80%

Productivity



·         Material feeding conveyor is able to load upto 22 pcs per batch

·         30 pieces per minute

Product Dimensions

W1080mm*D660mm*H1200mm

Net Weight

1000lbs

Warranty



·         One year limited with lifetime support

·         Rusting and damage due to improper storage condition or maintenance are not covered by warranty





Grooving Machine

cylindrical cell production line








PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
