400mm Width Pressure Control Electrode Roller Press Machine For Battery Production

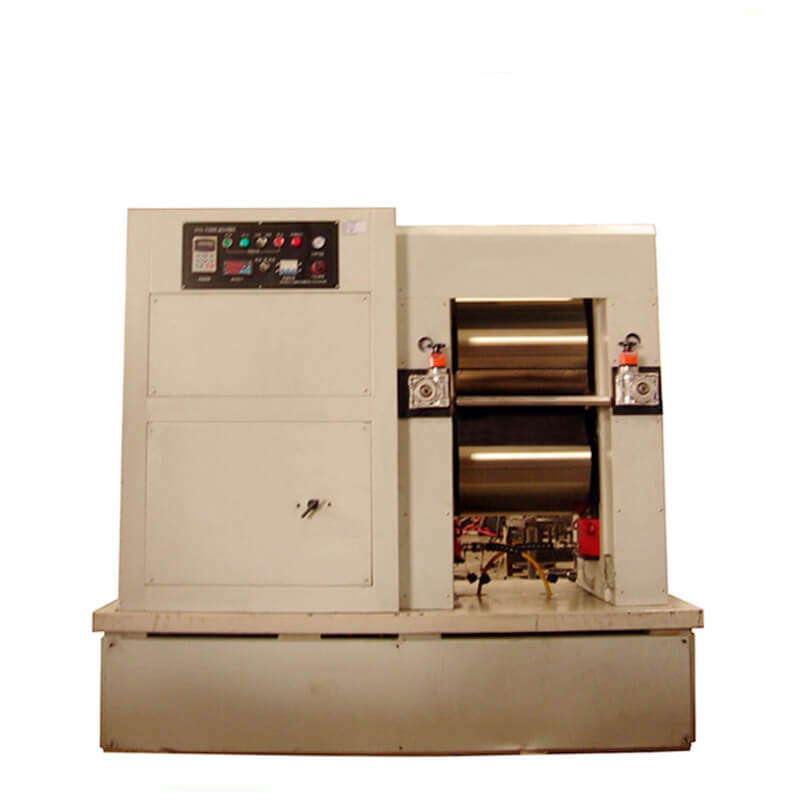

1. LITH-703B system battery roll press machine is a high precision Oil pressure control roller press machine. It has dual rollers of 400mm dia.* 450mm width. This battery roll press machine is an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying for producing.

2. This model battery roll press machine is with 200T pressure, The operator adjust the press pressure to get best effect battery electrode density according to battery design.

Model

LITH-703B

Type

Vertical 2 Roll Press type

Source voltage

380V/50Hz

Power

7.5KW

Warranty

One year limited warranty with lifetime support

Roller diameter

Die * width=400450mm

Suitable electrode width

400mm

Speed

7r.p.m

Pressure

200T

Max rolling gap adjustment

0-2mm adjustable

Structure

1 Roll surface roughness, surface roughness of 0.4um

2 Roll hardness: HRC62-65, roll conditioning: HB280-300,

18mm or higher quenching depth and roll cylindricity less than 0.003 mm

3 Adopt p52 precision bearings

4 Roll gap adjusting : automatic locking device, 0-2 mm is adjustable

Dimension(LW*H)

210011501700mm

Weight

About 5T

Roller Press Machine

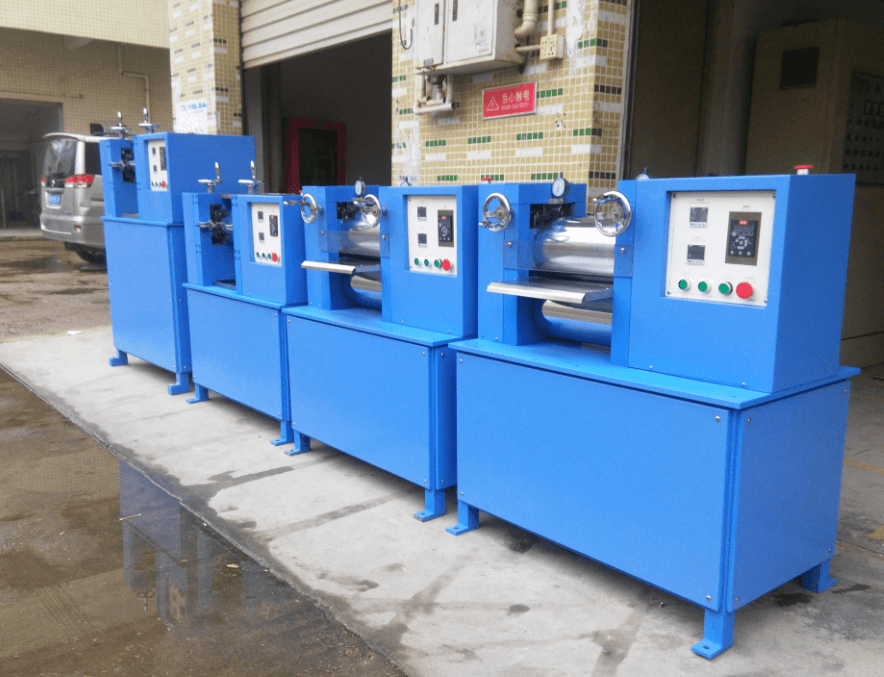

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.

HotTags : Electrode Roller Press Roller Press Machine Roller Press

Model	LITH-703B
Type	Vertical 2 Roll Press type
Source voltage	380V/50Hz
Power	7.5KW
Warranty	One year limited warranty with lifetime support
Roller diameter	Die * width=400*450mm
Suitable electrode width	400mm
Speed	7r.p.m
Pressure	200T
Max rolling gap adjustment	0-2mm adjustable
Structure	1 Roll surface roughness, surface roughness of 0.4um 2 Roll hardness: HRC62-65, roll conditioning: HB280-300, 18mm or higher quenching depth and roll cylindricity less than 0.003 mm 3 Adopt p52 precision bearings 4 Roll gap adjusting : automatic locking device, 0-2 mm is adjustable
Dimension(LWH)	210011501700mm
Weight	About 5T
