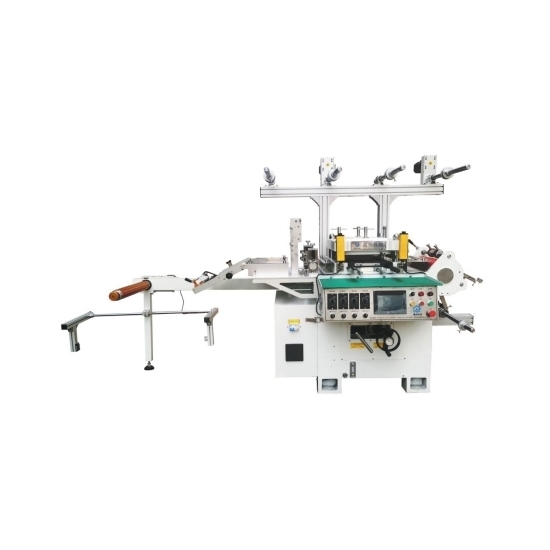

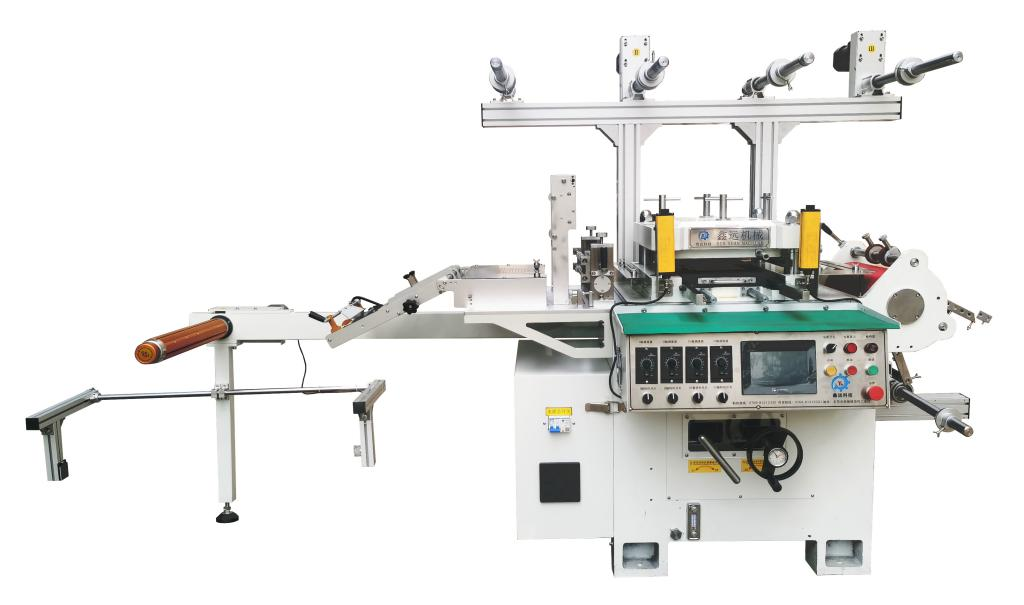

Automatic Foam/Metal Foil/Film Die Cutter Machine
Performance characteristics
1. Servo motor drive, automatic oil supply, simple operation, low noise;
2. Manual pressure regulation, stronger pressure control, large pressure, better locking stability;
3. Various functions can be modified flexibly: laminating function, independent waste discharge, winding, on-line slitting, etc.
Application
Self-adhesive, mobile phone accessories, electronic shielding materials, protective film, optical adhesive, AB adhesive, double-sided adhesive, backlight, foam, copper aluminum foil, silicone rubber and other materials
Technical parameters
|
Machine type |
LITH-P350 |
LITH-P450 |
|
Template area |
350*320mm |
450*420mm |
|
Maximum input width |
355mm |
450mm |
|
Die cutting speed |
≤300pcs/min |
≤300pcs/min |
|
Material feeding accuracy |
≤80±0.1mm |
≤80±0.1mm |
|
Pressure regulation accuracy |
0.01mm |
0.01mm |
|
Overall dimension(L*W*H) |
1950*1250*1800mm |
2200*1400*1800mm |
|
Voltage power |
220V/5KW/AC |
380V/7KW/AC |
|
Machine weight |
1700kg |
2200kg |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
