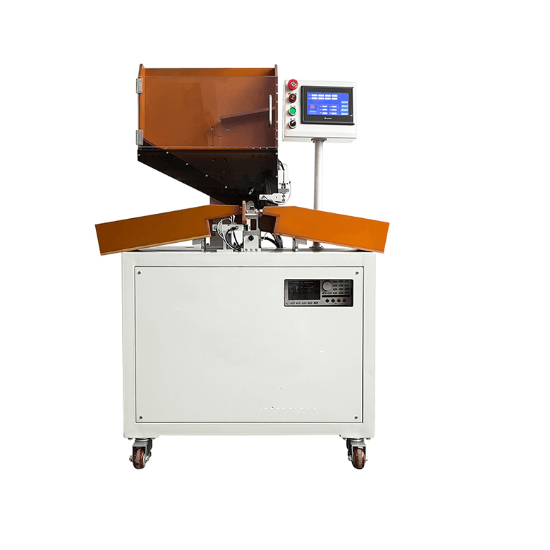

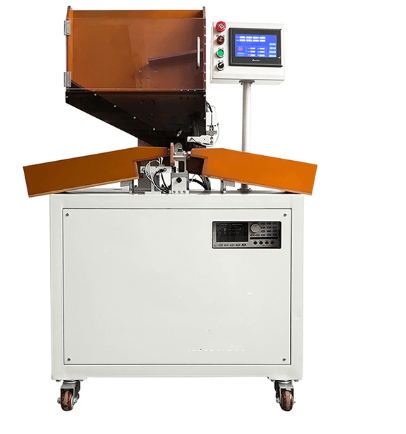

Automatic 5 Channel Battery Sorter Sorting Machine for 18650 21700 32650 Cylindrical Battery

Product Categories

Contact Us

  • Contact Person : Louis Yang
  • Email : Louis@lithmachine.com
  • Address : No. 5 Nanshan Road, Huli District, Xiamen City, Fujian Province, China
Automatic 5 Channel Battery Sorter Sorting Machine for 18650 21700 32650 Cylindrical Battery Automatic 5 Channel Battery Sorter Sorting Machine for 18650 21700 32650 Cylindrical Battery

Automatic 5 Channel Battery Sorter Sorting Machine for 18650 21700 32650 Cylindrical Battery

  • ItemNo :

    LITH-FN-5
  • MOQ :

    1
  • Place of Origin:

    China
  • Color :

    optional
  • Port :

    Xiamen Port
  • Compliance:

    CE
  • Warranty:

    2 years
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details
Automatic 5 Channel Battery Sorter Sorting Machine for 18650 21700 32650 Cylindrical Battery


Introduction:

Battery sorting machine is for batteries testing before battery pack assembling.

Can test battery voltage and internal resistance, and sorting cells to different bracket with different voltage and internal resistance.



Advantage:

1. Stable control system

2. High configuration regulator

3. High Precision Work Procedure

4. High cost performance ratio of products



Technological Process:

The battery resistance and voltage are set by the battery testing software of the upper computer, and the following functions are automatically completed by PLC:

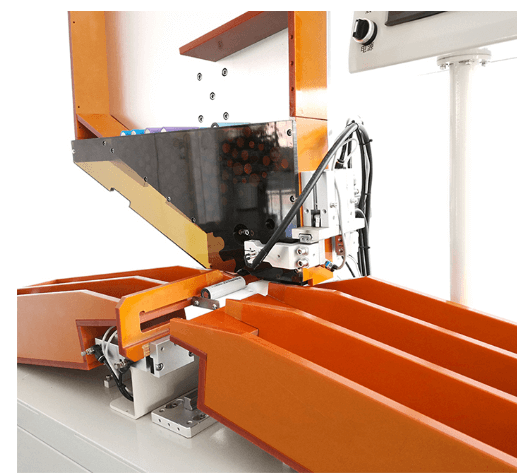

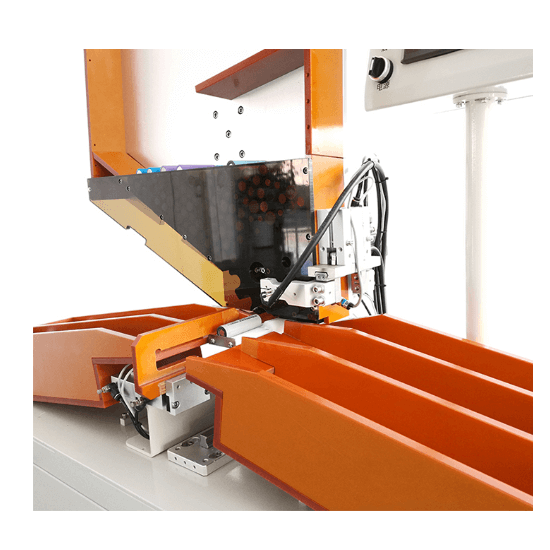

Manual filling of batteries→wave wheel rotating feeding→belt carrying batteries→ejector cylinder jacking batteries→ test cylinder closure (test instrument uploading data, software sorting)→mechanical gripper sorting batteries.

The equipment is equipped with acoustooptic alarm, which can be sorted to complete automatic shutdown. Full material alarm, fault alarm, etc. Operating parameters can be set according to the actual requirements of customers.



Structure of Sorter:

1) The equipment has compact and reasonable structure, beautiful appearance and small space occupation.

2) The equipment is simple to operate, and no professional training is required. The workers can easily master it.

3) The equipment is made of high-quality thick cold-rolled sheet metal and aluminium profile frame.

4) The equipment is equipped with universal movable casters, which can move easily when shifting.


Specification:

Model

LITH-FN-5

Power supply

AC220V ± 10% 50Hz

Voltage

800W

Sorting parameters

Open Circuit Voltage and AC Internal Resistance

Compressed Air Pressure

0.5 ~ 1.0Mpa

Sorting Speed

≥80PPM

Productivity

5000pcs/h

Dimension

850*580*1350mm

Adaptation Battery

Cylindrical Battery

(18650,32650,18500,26650,14500,21700 etc.)

Receiving Channel

5 channels

Internal Resistance Tester



HIOKI3561 or HK3561

HIOKI3561:

Open circuit voltage accuracy:± 0.01% rdg;

Display Resolution: 0.1 millivolt;

Internal impedance accuracy:± 0.1% rdg;

Display Resolution: 0.01 mΩ



HK3561:

Open circuit voltage accuracy: ± 0.05% rdg;

Display Resolution: 0.1 millivolt;

Internal impedance accuracy:± 0.5% rdg;

Display Resolution: 0.01 mΩ

Total weight

195kg

Control component

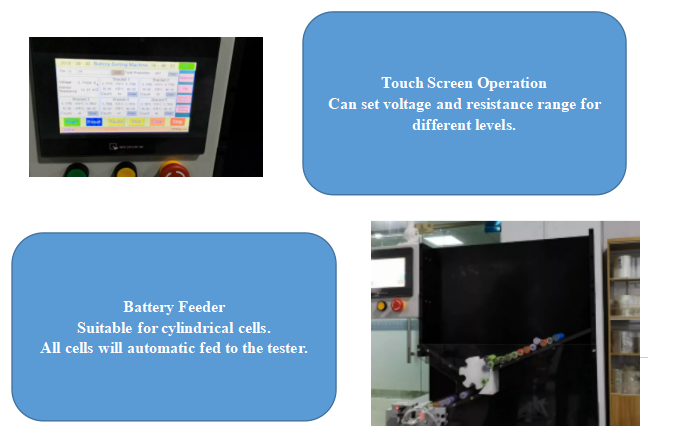

7.5 inches Large size LCD screen/Touch screen

Feeding

Using hopper feeding mode, 500 PCS can be put in one time.

Data storage

Test data can be stored on a U disk



Application:

Battery sorting machine is for batteries testing before battery pack assembling.

Can test battery voltage and internal resistance, and sorting cells to different bracket with different voltage and internal resistance.

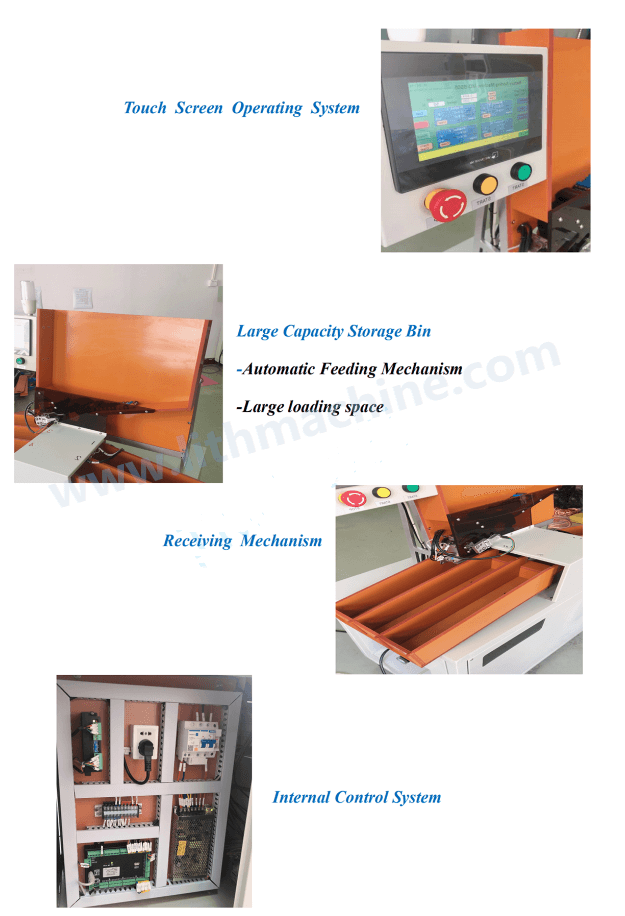

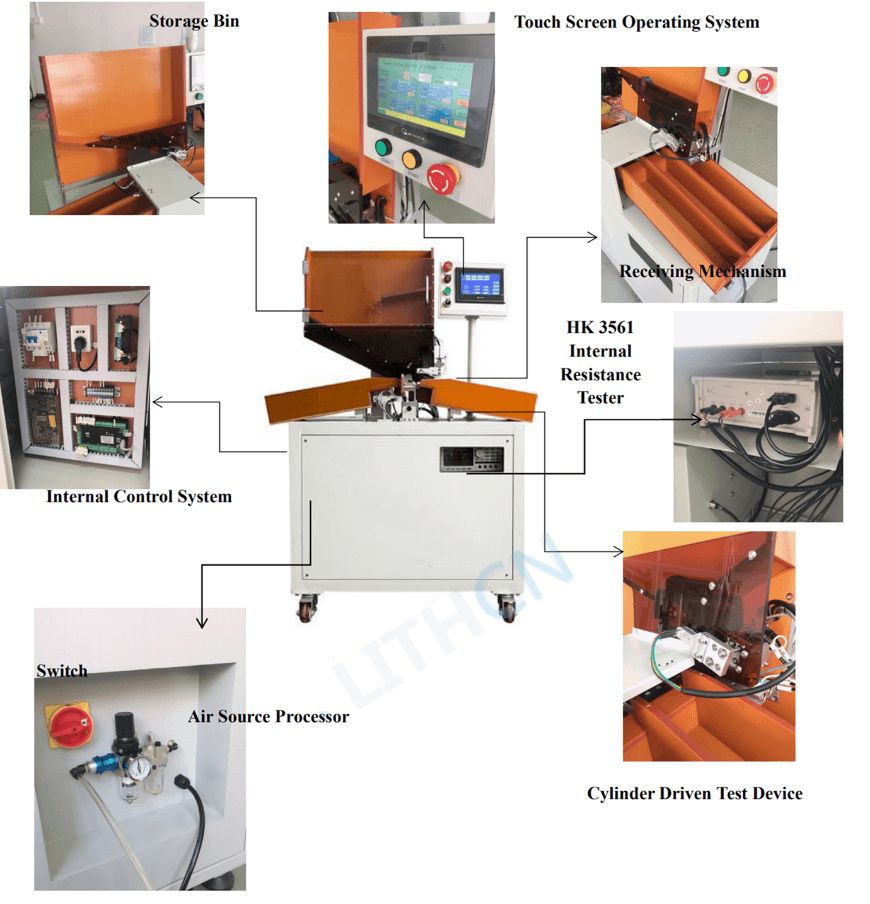

Detail Show:






Related Machine:

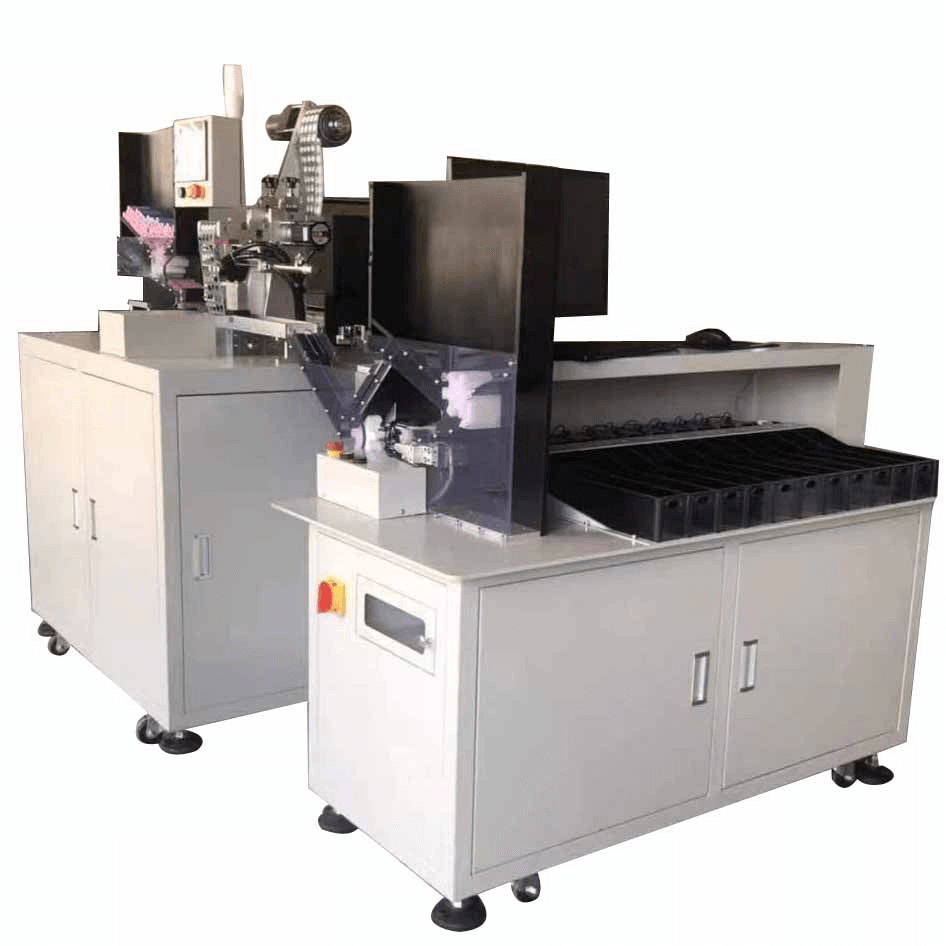

2 In 1 Battery Sorting and Sticking Machine






Cylindrical Battery Sorter

Battery Sorter


           Cylindrical Battery Sorter

Automatic Cylindrical Battery Sorter










PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
