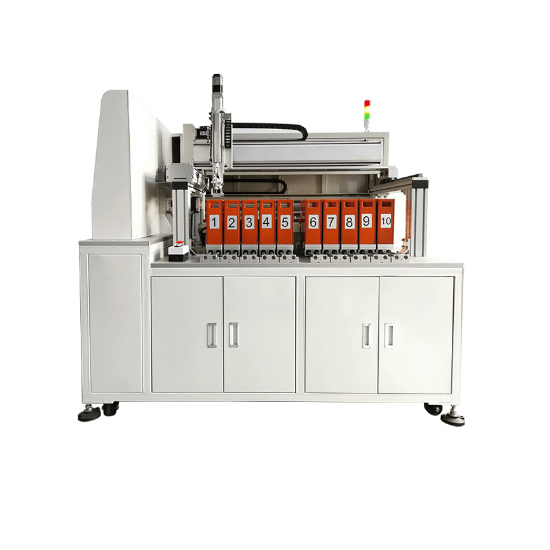

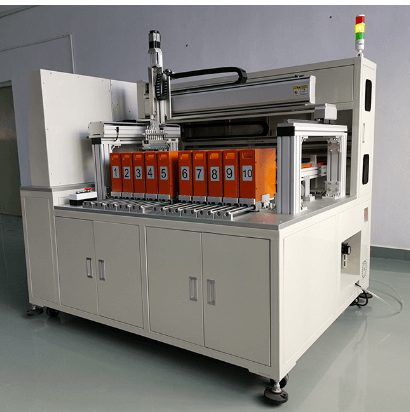

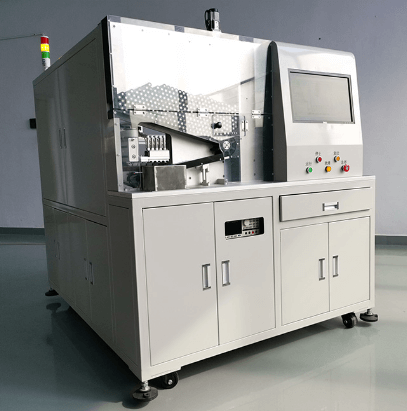

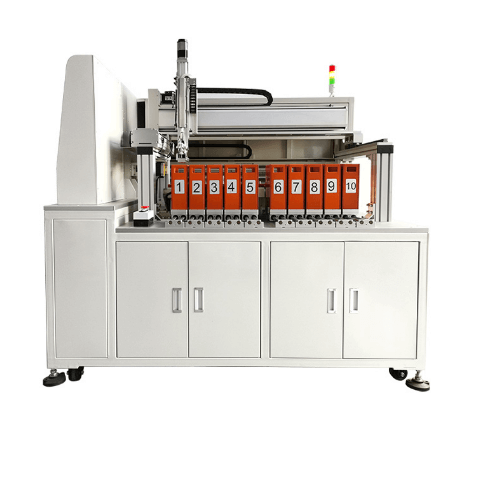

Automatic 10 Channels Grading Sorter Cells Testing &Sorting And Collecting Machine

Automatic 10 Channels Grading Sorter Cells Testing &Sorting And Collecting Machine

  • ItemNo :

    LITH-FX-10SL
  • MOQ :

    1
  • Color :

    optional
  • Port :

    Xiamen Port
  • Compliance:

    CE
  • Warranty:

    2 years
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details
Automatic 10 Channels Grading Sorter Cells Testing &Sorting And Collecting Machine


Introduction:

The integrated sorting and collecting machine is to add the automatic collecting function on the basis of the sorting machine, which greatly saves the manual collecting time.



Product advantages:

1. Automatic sorting the voltage and internal resistance of 18650 and polymer battery.

2. The upper and lower limits of voltage can be set by voltage sorting.

3. The accuracy is high speed and fast, and the imported voltage internal resistance tester is used.

4. Professional control system; stable and reliable; high-grade driver.

5. Imported guide rail, plane speed and smoothness are enough to ensure smoothness.

6. High efficiency, productivity: 6000pcs/h. One machine can replace 5 labors.



Features:

1.Professional Control System Stable and reliable high-end drive sizing

2.The device can be set according to the internal resistance voltage value

Delivery of lithium batter to designated channels.

3.Integration of automatic feeding and collectingthe cores are arranged neatly, increase of efficiency.

4.Full material alarm function.



Specification:

Voltage

AC220V,50Hz

Compressed Air

0.4-0.8Mpa

Internal Resistance

Hioki3561 or HK3561

Measurement of Internal Resistance

Range:0-80mΩ

Accurace:± 0.5% rdg

Resolving power: 0.1mΩ

Size(L x W x H)

1400x1700x1500mm

Sorting Speed

60-70PPM

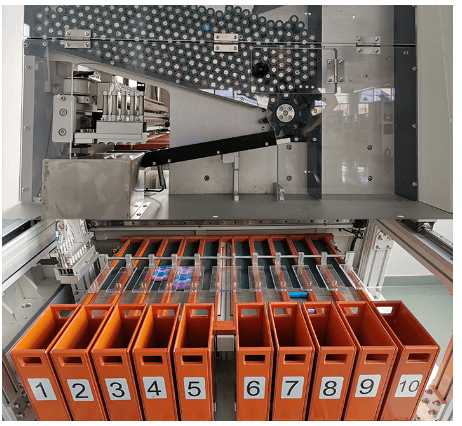

Receiving box

10PCS

Control Mode

PLC+PC(IPC)



Equipment Configuration:

Serial No.

Spare Parts

Brand

1

Air Cylinder

SMCCKD

2

Solenoid Valve

SMC

3

Linear Guide Rail

TPI

4

Electric Relay

OMRON

5

PLC

TouchWin

6

Inductorium

OMRONSUNX

7

Button

Goncon

9

Switch

MingWei

10

Tester

Hioki3561 or

HK3561








18650 Battery Sorter

Battery Sorting Machine

Cell Sorting Machine

Battery Sorter



Related Machine






PACKAGE:

     1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

     2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

     3 Responsible for the damage during the shipping process, will change the damage part for you for free.



DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
