Louis@lithmachine.com100KW 1400C Muffle Furnace with S Type Thermocouple

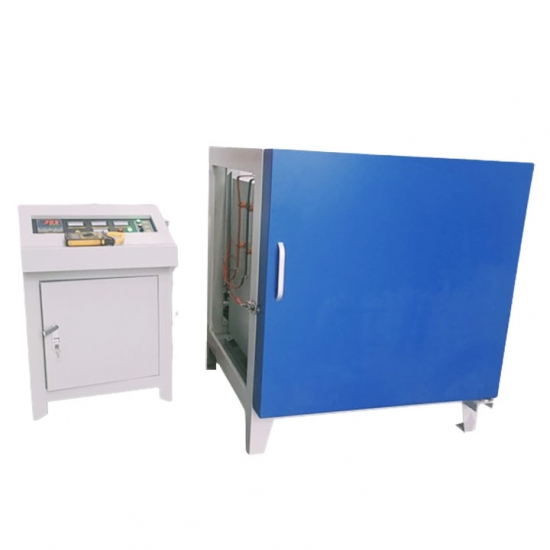

The picture is just for reference
|
Main parameter |
PN: SX2-100-14TPD Max.Temp: 1400℃ Working temperature:0-1300℃ Chamber size:D800*W800*H1000mm Rated power:100kw(Subject to design) Customized voltage:220v 3phase 50HZ/60HZ Suggested heating rate:15℃/min Heating element:Sic heater Thermocouple:S type(overheating and couple breaking protection) Temperature accuracy: ±1℃ |
||
|
Appearance design |
The electric furnace adopts humanized design, beautiful and easy to operate, and the outer layer of paint is sprayed with high temperature baking technology. High temperature resistance, oxidation resistance, acid and alkali resistance. Color selection is aging resistant tone, will not cause the appearance color fade due to a long time of use. |
||
|
Furnace Chamber material |
Adopt the most advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance, cold and heat resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace. |
||
|
Furnace chamber design |
Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace. |
||
|
Furnace shell structure |
Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury. |
||
|
Temperature controlling |
Separate control cabinet,Adopt international advanced Yudian temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.
|
||
|
Temperature control security |
The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe. |
||
|
Warranty |
One year limited warranty with lifetime support, excluding heating element,furnace chamber,thermocouple damaged by user. Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty. |
||
|
Standard Package Accessories: |
|||
|
Electric Furnace |
1 set |
|
|
|
Heating element |
2pcs |
|
|
|
High temperature gloves |
1 pair |
|
|
|
Crucible clip |
1 pc |
|
|
|
User manual |
1 book |
|
|
|
Control cabinet |
1 set |
|
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
