ItemNo :
LITH-1400MuffleMOQ :
1Compliance:
CEWarranty:
2 yearsDelivery Time:
5 daysEmail :

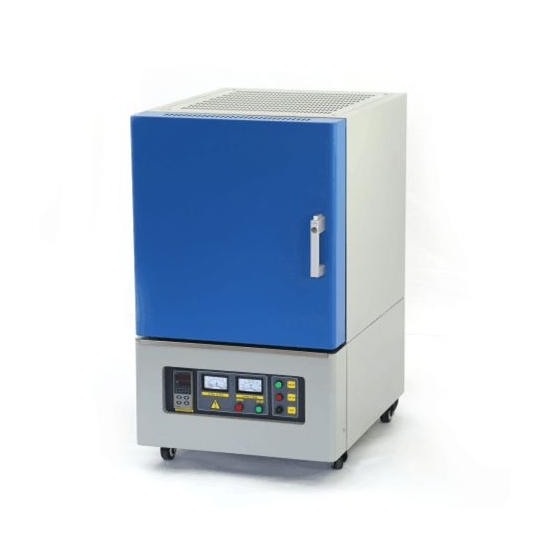

Louis@lithmachine.comHigh Temperature 1400°C Box Muffle Furnace
Detailed parameter information
|
Modle |
1400-I |
1400-II |
1400-III |
1400-Ⅳ |
1400-Ⅴ |
1400-Ⅴ |
|
Power |
3 KW |
5 KW |
7KW |
9 KW |
12KW |
18KW |
|
Chamber（DXWXH） |
160X150X150mm |
200X200X200mm |
300X200X200mm |
300X250X250mm |
400X300X300mm
|
500X400 X400mm |
|
Dimensions |
520X490X880 |
564X530X930 |
600X630X970 |
620X630X1020 |
670X760X1110
|
840X870 X1740 |
|
Supply voltage |
220V |
220V |
220V |
380V |
380V |
380V |
|
Phase |
single phase |
three phase |
||||
|
Heating element |
Silicon carbide rod |
|||||
|
Control mode |
UAV program temperature control instrument 1, 30-stage program temperature control intelligent PID adjustment. 2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1420 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace). 3, with 485 communication interface (standard when purchasing software) 4, with power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure. 5, the meter has the function of temperature self-tuning
|
|||||
|
Heating rate |
≤30 ℃/ Min |
|||||
|
Recommended rate of temperature rise |
15℃/ Min |
|||||
|
Chamber material |
1600 alumina polycrystalline fiber |
|||||
|
Control precision |
+/- 1 ℃ |
|||||
|
Maximum temperature |
1400 ℃ |
|||||
|
Rated temperature |
1350 ℃ |
|||||
|
Peripheral surface temperature |
≤35 ℃ |
|||||
|
Thermocouple Type |
S |
|||||
|
Trigger |
· Phase-shifted trigger |
|||||
|
Electric appliance |
Zhejiang chint |
|||||
|
Silicon controlled |
· 106/16E SEMIKRON |
|||||
|
Travel switch |
A travel switch is installed on the furnace door. When the furnace door is opened, the power supply is automatically cut off to prevent the risk of electric shock from hitting the heating element. |
|||||
|
C ertification |
CE | |||||
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
