Type 316 Stainless Steel Wire Cloth - 12" x 12"

Product Categories

Contact Us

  • Contact Person : Louis Yang
  • Email : Louis@lithmachine.com
  • Address : No. 5 Nanshan Road, Huli District, Xiamen City, Fujian Province, China
Type 316 Stainless Steel Wire Cloth - 12

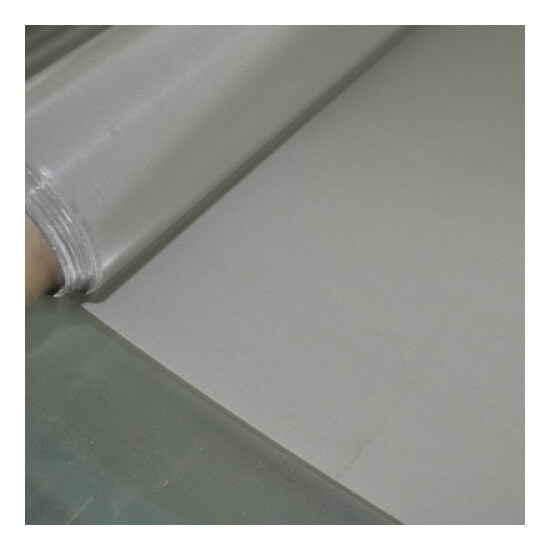

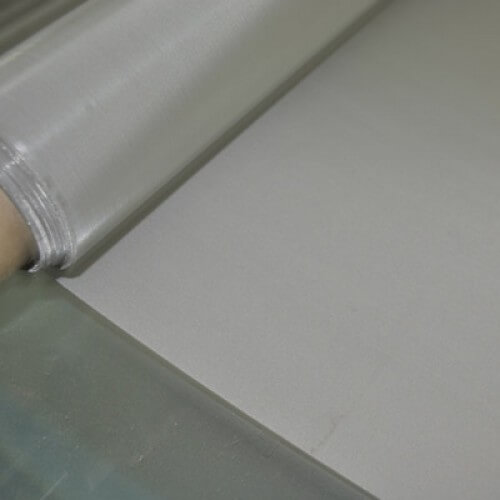

Type 316 Stainless Steel Wire Cloth - 12" x 12"

  • Product Details

Type 316 Stainless Steel Wire Cloth - 12" x 12"



Features


Type 316 stainless steel bolting grade woven wire cloth especially suited for direct methanol fuel cells and for use as convection (open air) current collectors.  This can be used as a diffusion layer and current collector in direct methanol fuel cells and on the cathode of any open-air fuel cell.


Type 316 stainless steel has greater corrosion resistance than Type 304 stainless steel.

Mesh Size   Opening Size Open Area    Wire Dia.
70 x 70 0.0106" 55% 0.0037"
72 x 72 0.0102" 54% 0.0037"
80 x 80 0.0088" 50% 0.0037"
84 x 84 0.0084" 50% 0.0035"
90 x 90 0.0076" 47% 0.0035"

Mesh Size - the number of openings within a linear inch of the wire cloth
Wire Diameter - indicates the thickness of the wire
Opening Width - refers to the actual open space between parallel wires




Stainless Steel Wire Cloth

CE Certificate


Cooperative Brand



PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.

Warehouse and transportation
