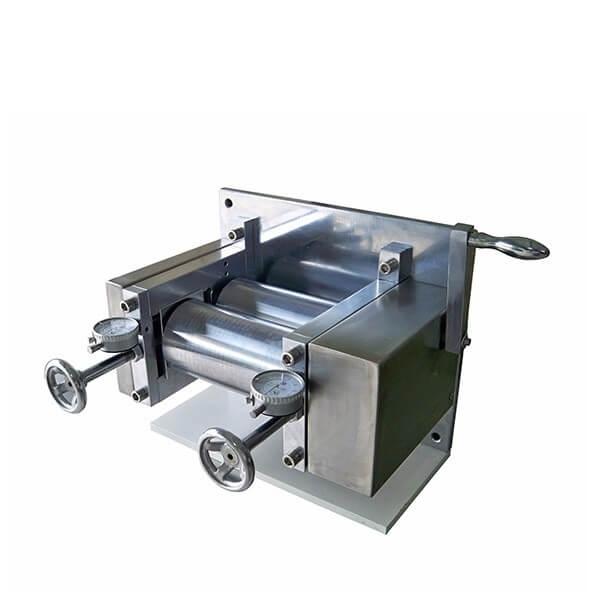

Small 4-15" Wide Vertical Manual Rolling Press Machine

Contact Now

LITH-JK-GYJ-100A-V is compact Hot Rolling Cylinder Press, which is designed for preparing battery electrode for both inside or outside glove-box. It serves well in the application such as increasing active material density of the electrode in Li-ion batteries research after coating.

SPECIFICATIONS:

Roller Size

100mm(Dia.) x 100mm(W) (Optional width from 100mm to 400mm)

Product Thickness

0~3 mm adjustable

Minimum Thickness

Depending on the electrode's material and thickness, typically:
A 0.16mm thick electrode coated on copper can be pressed into a minimum thickness of 0.1 mm
A 0.06mm thick electrode coated on copper can be pressed into a minimum thickness of 0.04 mm
A 0.33mm thick silver/gold can be pressed into a minimum thickness of 0.03 mm

Roller

1. Roller diameter tolerance: 0.004mm
2. Material: Made from hardened tool steel (RC > 62) with Cr electroplated coating

Roller Surface Hardness

62 HRC
Never roll materials with hardness > 50HRC

Compliance

CE Certificate

Warranty

One Year limited warranty with lifetime support

Warnings

1. Never roll materials with hardness > 50HRC
2. In order to prolong the lifespan of the roller bearings, regular lubrication is recommended.
3. Clean roller surface for each rolling and Use acetone to clean and lubricate when not in use to avoid corrosion.
4. This rolling machine can be used under Ar gas.

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.

DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
