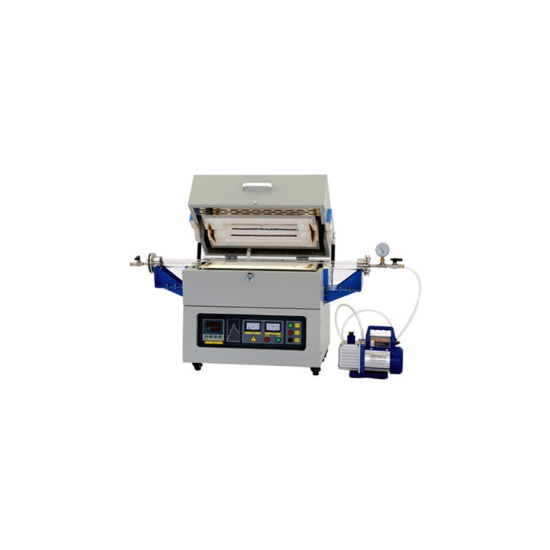

Single-Zone 1600°C Max. Tube Furnace With Optional Tube Sizes

ItemNo :
LITH-1600Cfurnace
MOQ :
1
Delivery Time:
5 days
Email :
Louis@lithmachine.com

Contact Now

Product Details

Single-Zone 1600°C Max. Tube Furnace With Optional Tube Sizes

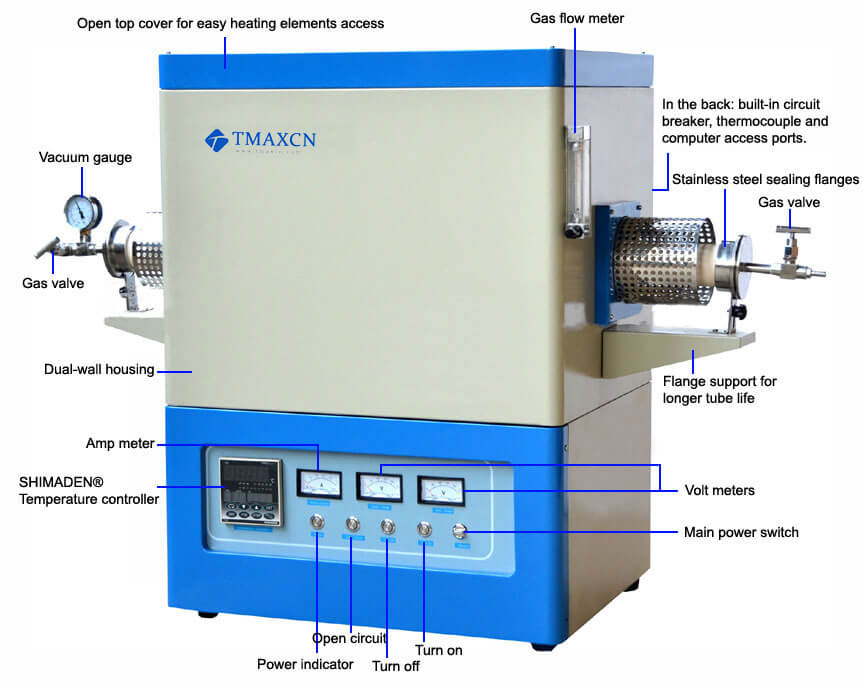

This tube furnace uses silicon molybdenum rod as heating element, adopts double-layer shell structure and temperature control instrument. It can carry out 30-stage program temperature control, phase-shift trigger, and thyristor control. The furnace is made of alumina polycrystalline fiber material. Both ends of the furnace tube are sealed with stainless steel flanges, and gas nozzles, valves and pressure gauges are installed on the stainless steel flanges. The vacuum degree can reach 10-3 Pa when evacuating. The furnace has the advantages of balanced temperature field, low surface temperature, fast rise and fall temperature rate, and energy saving. It is an ideal product for high-temperature atmosphere sintering, atmosphere reduction, CVD experiment, vacuum annealing in universities, scientific research institutes, and industrial and mining enterprises.

Detailed technical parameters

Model	TL1600-I	TL1600-II	TL1600-III
Power	5KW	5KW	6kw
Tube size（OD）(mm)	High-purity corundum tube: 60/80/100*1000mm (optional tube diameter) Two furnace plugs are placed on each side. The furnace plug can block the heat radiation in the center of the furnace tube and must be placed in the correct position in the furnace before heating.
Dimension	1120X490X855	1120X490X855	1120X520X945
supply voltage	220V
phase	single phase
heating element	1800 model silicon molybdenum bar
Temperature control type	Use Yudian program temperature control instrument (standard) 1. 30-segment program temperature control intelligent PID adjustment. 2. With over-temperature protection, the electric furnace heating circuit will be automatically cut off when the temperature is over-temperature or when the couple is broken. ON, the ON light on the panel is off, the OFF light is on, and the electric furnace is limitedly protected). 3. With 485 communication interface (standard with optional software) 4. It has a power failure protection function, that is, when the furnace is powered on after the power is turned off, the program does not start from the initial temperature, but starts from the furnace temperature when the power is off. 5.The meter has the function of temperature self-tuning (you need to pay extra for the replacement of imported instruments, optional) FP93 instrument EUROTHERM instrumentTouch screen instrument (shimaden, Japan)
Chamber material	1. The hearth material is made of high quality alumina polycrystalline fiber. 2. The surface of the inner furnace is coated with imported 1800 degree high temperature alumina coating, which can increase the emissivity and make the temperature field more balanced.
Valves and flanges
control precision	+/- 1 ℃
trigger	· Phase-shifted trigger
electric appliance	Zhejiang chint
silicon controlled	· 106/16E SEMIKRON
Max. temp	1600 ℃
Rated temp	1550 ℃
heating rate	≤20 ℃/ Min (Can be modified as required)
Recommended rate of heating	≤10 ℃/ Min
Thermocouple model	B Type
Length of heating section	300mm

Standard Package

Part description	Quantity	Part image
tube furnace	1 pc
Stainless steel vacuum sealing flange set w/ pressure meter	1 set
Alumina tube 1000mm length	1 pc
Flow meter	1 pc
Spare heating element	2 pcs
Stainless steel hook	1 pc
Alumina ceramic thermal block	2 pairs
Thermal gloves	1 pair
Spare fuse	2 pcs
