Single Side Aluminum Foil Coated with LiMn2O4 for Cathode of Lithium ion Battery

Single Side Aluminum Foil Coated with LiMn2O4 for Cathode of Lithium ion Battery

  • Product Details


Single Side Aluminum Foil Coated with LiMn2O4 for Cathode of Lithium ion Battery



Specifications

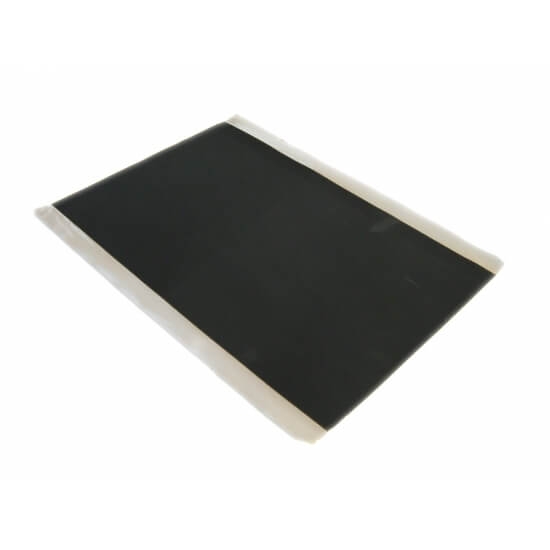

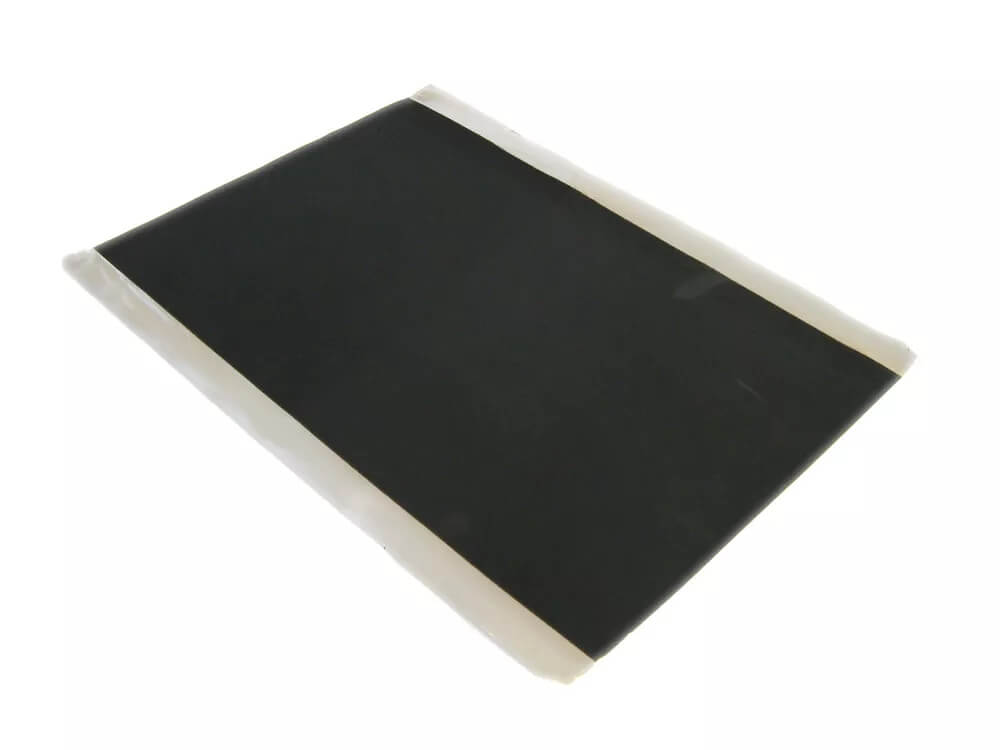

This electrode sheet is based on Aluminum foil coated by lithium-manganese oxide in single side and is used as the cathode of Li-Ion battery   5 sheets/bag


SPECIFICATIONS

  • Current collector (substrate): Aluminum foil ( 15 microns)
  • Cathode material: lithium-manganese oxide
  • Single side active material density: 166g/m²
  • Active Material Weight: 6.507g
  • Active Material Proportion in Powder(weight ratio): 94.20%
  • Specific Capacity: 110 mAh/g
  • Average Cycle Life: 500 Cycles @ 0.2C Charging/Discharging Rate
  • Length: 241mm
  • Width: 200mm
  • Total Thickness: 100um +/- 5um
    Foil Thickness: 15um +/- 5 um
    Coating Thickness: 85 +/- 10um
  • Single side coated
  • Qty: 5 sheets/bag
  • Warning:  Please dry in vacuum oven before using and store it inside glovebox after open package










PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
