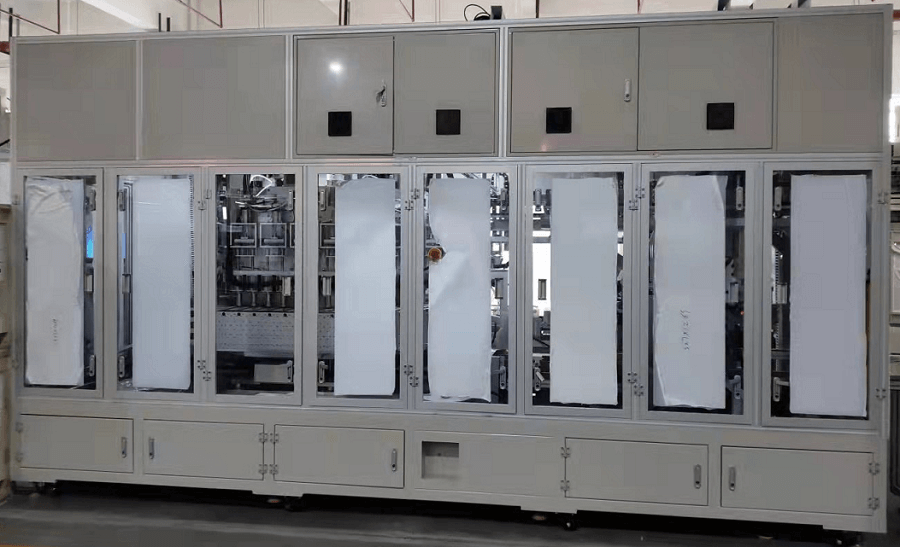

Prismatic Cell Electrolyte Filling Equipment Electrolyte Liquid Injection Machine
Workflow
Specification
|
Project |
Parameters |
|
Resting method |
Isobaric static or atmospheric static |
|
Vacuum holding pressure |
5KPA value change within 60S |
|
Injection accuracy |
Injection volume ≥125g±0.8%; Injection volume <125g±1g; |
|
Production efficiency |
≥12ppm |
|
Qualification rate |
≥99% |
|
Crop rate |
≥98% |
|
Dimension |
W10000 × L6500 x H2500mm |
|
Weight/load |
>750Kg/M2 |
|
Power supply |
AC380V three-phase;voltage fluctuation±10%;power:20KW;frequency:50Hz |
|
Compressed air |
0.5~0.7Mpa ( 5~7kgf/cm2 ), dosage 600L/min |
|
Model |
TMAXZTHZYX-300 |
|
Cell height |
90~220mm |
|
Cell width |
100~200mm |
|
Cell thickness |
20~80mm |
Production Assembly Plant
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
