Louis@lithmachine.comPrismatic Battery Fully Automated Encapsulation Machine Sealing Machine
Workflow
Specification
|
Project |
Parameters |
|
Aluminium film punching method |
3-piece film method, top pressing and bottom topping |
|
Film feeding method |
Servo feeding, feeding accuracy ≤ +0.1mm |
|
Punching pattern |
Servo punching shell, adjusting accuracy ≤±0.1mm, can punch single and double pits, simultaneous adjustment |
|
4-corner error of aluminium film punching |
≤±0.15mm |
|
Alignment accuracy of the top and bottom of the aluminium film |
≤±0.5mm |
|
Sealing mode |
Heat encapsulation |
|
Sealing drive |
Servo pressure mode, with cylinders on 2 sides of the head as pressure adjustment |
|
Head temperature control accuracy |
±3°C |
|
Head operating temperature range |
170~200°C |
|
Coding machine |
Inkjet |
|
Production efficiency |
Model 150 ≥12ppm; Model 300 ≥8ppm |
|
Conformity rate |
≥99% |
|
Crop rate |
≥98% |
|
Dimension |
W7000 × L3000×H2350mm |
|
Weight/load |
>750Kg/M2 |
|
Power supply |
AC380V three-phase;voltage fluctuation±10%;power:20KW;frequency:50Hz |
|
Compressed air |
0.5~0.7Mpa ( 5~7kgf/cm2 ), dosage 400L/min |
|
Model |
TMAX-ZTHFZX-150 |
TMAX-ZTHFZX-300 |
|
Cell length |
45~150mm |
120~300mm |
|
Cell width |
35~100mm |
80~200mm |
|
Cell thickness |
3~10mm |
4~12mm |

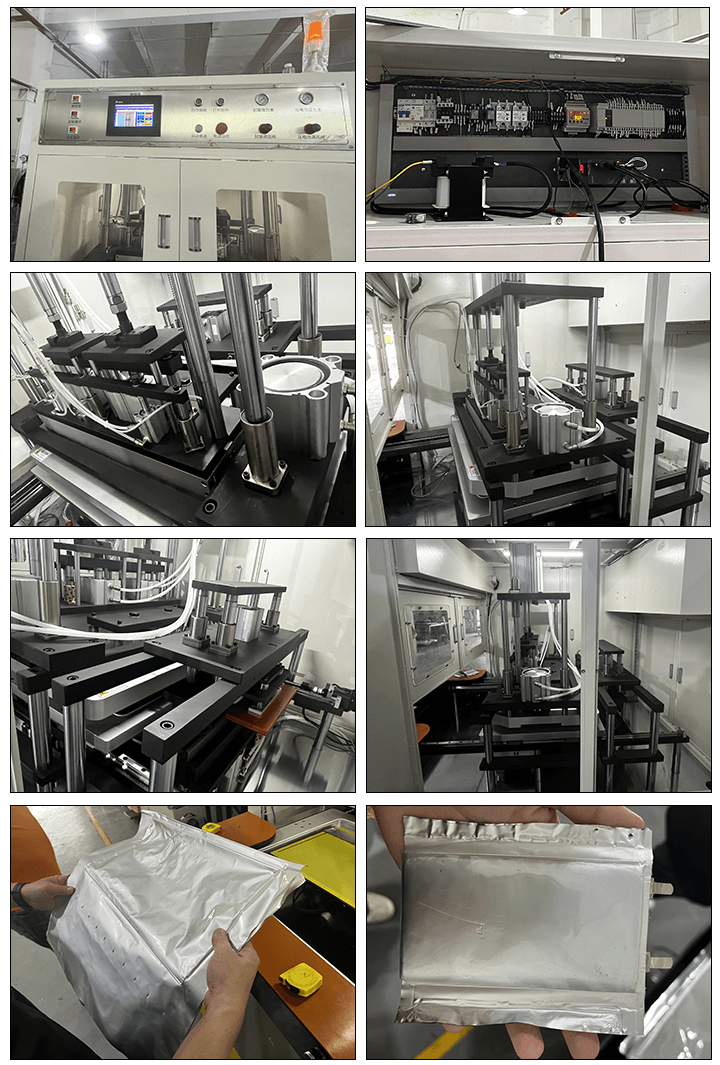

Production Assembly Plant
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
