Module Gluing Machine

Module Gluing Machine

  • ItemNo :

    LITH-BJXC-​GL01

  • MOQ :

    1

  • Place of Origin:

    China

  • Color :

    optional

  • Port :

    Xiamen Port

  • Compliance:

    CE

  • Warranty:

    2 years

  • Delivery Time:

    5 days

  • Email :

    Louis@lithmachine.com
  • Product Details

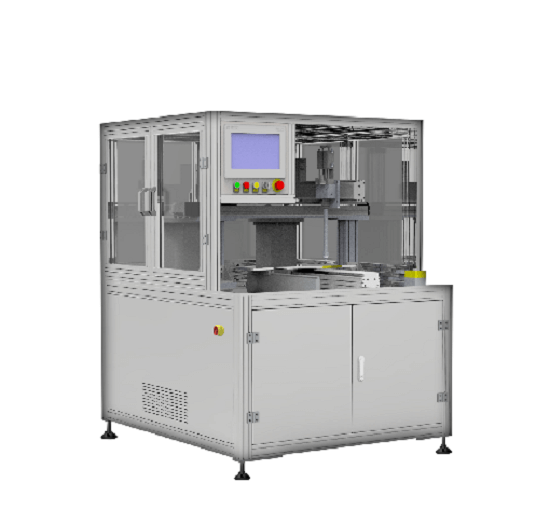

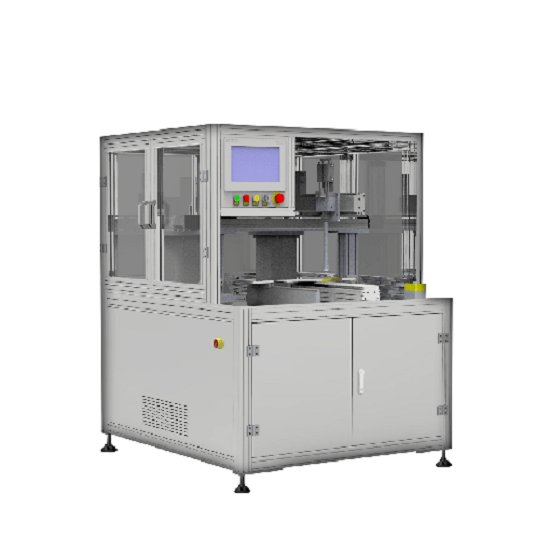

Module Gluing Machine




Products Description

This equipment is mainly used for single component and two-component gluing of soft package, square shell and cylindrical battery module. The system is integrated on the three-axis module for path gluing, which can realize three-dimensional path gluing. The equipment is a stand-alone equipment, with simple structure, stable performance, economic and practical. The loading and unloading mode of products can be customized according to the needs of users to realize the matching use of equipment and automatic production line.



Performance Characteristics

1. Dispensing path motion board control, computer graphics import, debugging convenient;
2. PLC control the amount and time of glue, high precision;
3. Suitable for single component, two-component and other types of glue.




Technical Parameter

Model Number

LITH-BJXC-GL01

Beat

60PPM

Voltage Source

220V 50HZ

Batteries

Cylindrical/Soft Package/Square Shell Battery

Power

2KW

Pressure

0.5-0.7MPA

Glue Quantity

0.1-0.5ML

Dimensions

1200*1350*1600(mm)







Module Gluing Equipment










PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
