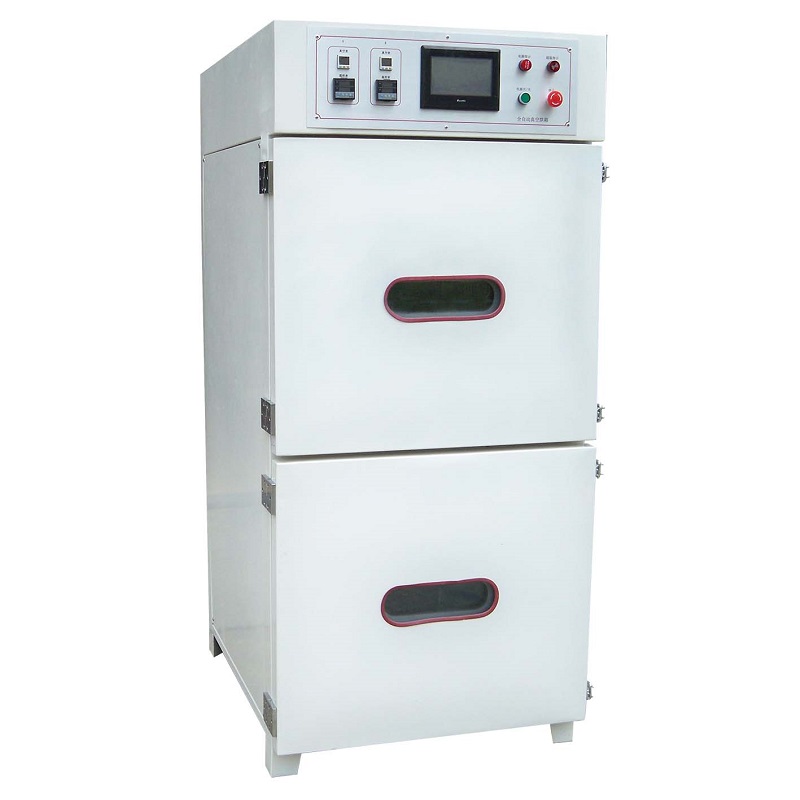

Large Electrode Sheet Baking Machine Two Layers Vacuum Drying Oven For Battery Making Machine

Contact Now

Introduction：

Vacuum Drying Oven is suitable for the vacuum baking process of battery electrode piece and battery cell to be injected in the production process of lithium battery. It adopts the industry-leading uniform temperature technology, the temperature fluctuation is ± 2 ℃; the vacuum cavity can be kept at - 0.098 MPa for more than 12 hours; multiple quality and safety protection are the ideal equipment to ensure the drying effect.

Features：

A. Electrical features:

1. AISET three position PID temperature controller is selected for temperature control with high resolution.

2. The temperature measuring probe is specially made by Taiwan Valin, which is placed at the back of vacuum chamber to quickly and truly reflect the working temperature.

3. Triple over temperature protection device can cut off heating automatically when the temperature exceeds the set value to ensure the safety of materials and equipment.

4. Equipped with timing shutdown function, timing starts after constant temperature, automatically stops when baking time ends, and each layer can be timed independently.

5. The fan of each layer can be opened independently and can be used as cooling fan when heating is stopped.

6. Using high quality sus stainless steel seamless electric heating tube, heating up quickly, energy saving and durable.

B. Structural features:

1. The vacuum chamber is heated by hot air around the chamber, and the design of circulating air duct is innovated to ensure high-precision uniform temperature in the chamber.

2. The inner chamber is made of T3.0 mm high quality sus stainless steel, which is resistant to corrosion of battery slurry and electrolyte.

3. The multi-layer heat insulation material forms a closed insulation layer, which can block the heat loss and effectively solve the problems of adjacent warehouse temperature and external wall heating.

4. The door is double-layer toughened glass structure with over-voltage protection function. When the air pressure in the chamber is too high, it can automatically deflate, so that the air pressure in the chamber can be restored to the allowable range.

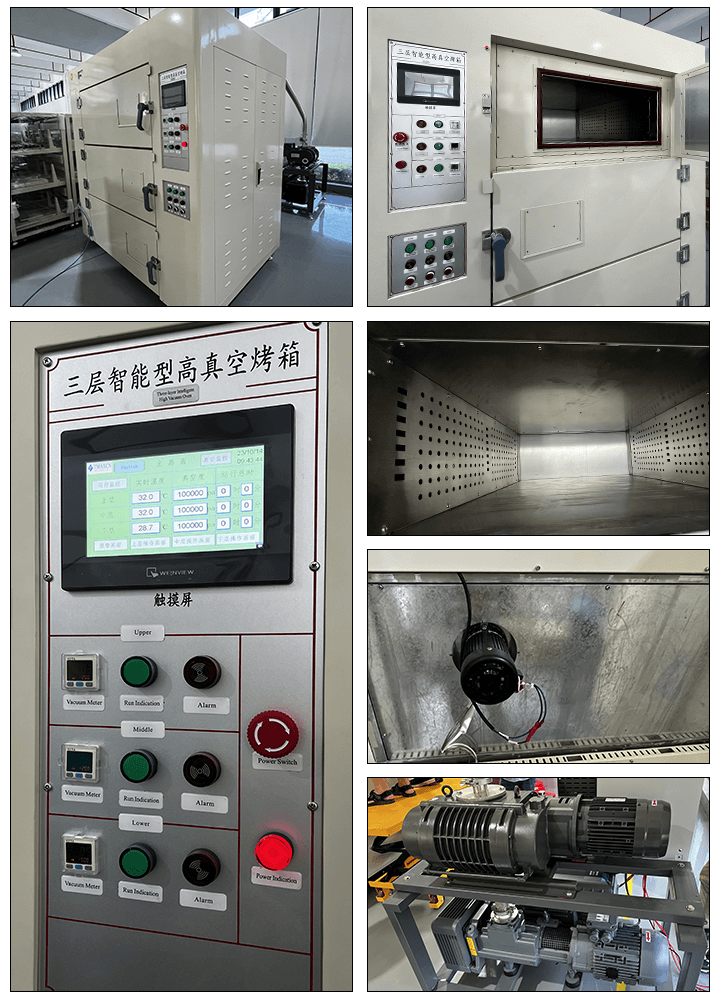

drying oven

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.

HotTags : Vacuum Drying Oven Electrode Drying Oven Drying Oven

Item	Specification
Touch Screen	7.0 Inch Xinjie color touch screen
PLC	Programmable controller
Thermostat	Shanghai Yatai brand PID temperature controller
vacuum meter	Panasonic digital vacuum meter
Operation interface	Color touch screen + PID temperature controller + digital vacuum meter; automatic air change, constant temperature and cooling can be realized
Working chamber size	H600mm×W600mm×H750mm×2 layers Optional Size:H650mm×W650mm×H750mm×2 layers
Whole machine size	H1800mm×W1200mm×H1100mm Optional Size:H1900mm×W1250mm×H1100mm
Power	Single layer:6KW（peak power）×2
Power supply	three-phase,380V /480V
Supporting gas source	vacuum：-0.095～-0.1Mpa compressed air：0.4～0.5Mpa Dry gas：0.1～0.2Mpa
Working temperature	Room temperature～150℃
Temp Accuracy	±1℃
Heating rate	It takes about 35 minutes for room temperature (25 ℃) to rise to 80 ℃
Heating mode	Electric heating, each layer of oven increases independent internal heat circulation, each layer is independent
Over temperature protection device	Each layer is equipped with double machinery overtemperature protection and independent temperature measurement
Alarm mode	Alarm lamp + buzzer on
Vacuum degree of working room	0～-0.098Mpa，After holding pressure for 12 hours, the vacuum degree shall be kept at least 96%
Pressure change rate	The vacuum breaking time of the working room is less than 1 minute
Working chamber material	SUS 304 stainless steel
Machine material	SECC steel plate with plastic coating on the surface
