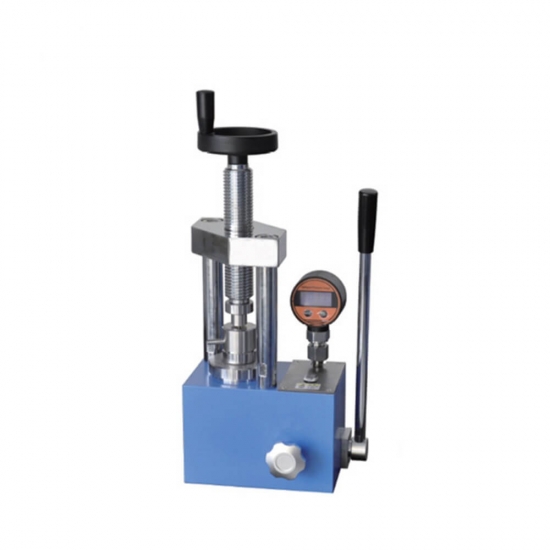

Laboratory Small Manual Two Column Powder Tablet Press with Digital Display for Grinding Materials
New SYP-TS digital display series
SYP-TS series protective hydraulic press is based on SYP-T pointer series upgrade and optimize the pressure display series, using XNNETS "S" type digital display pressure gauge, display accuracy of 0.01MPa, is very suitable for safety and pressure control precision requirements of the laboratory use.
With a specific mold, it can be pressed into shape for all kinds of powder samples. It is a common supporting equipment for calcium and iron analysis, infrared spectroscopy (IR), X-ray fluorescence (spectrometer) and other analytical instruments.
At the same time the machine is also suitable for other need corresponding pressure in the workplace, as the use of press, testing the pressure degree of various objects, etc., the application is very wide.
Parameters
Model |
SYP-3BS |
SYP-5BS |
SYP-12BS |
SYP-15BS |
Pressure range |
0-3T(0-28.8Mpa) |
0-5T(0-31.4Mpa) |
0-12T(0-30Mpa) |
0-15T(0-30Mpa) |
Pressure conversion |
1T=9.6Mpa |
1T=6.28Mpa |
1T=2.5Mpa |
1T=2.0Mpa |
Piston diameter |
Dia35 chrome plated cylinder |
Dia45 chrome plated cylinder |
Dia70 chrome plated cylinder |
Dia80 chrome plated cylinder |
Maximum piston stroke |
30mm |
30mm |
30mm |
30mm |
Type of pressure gauge |
XNNETS "S" digital pressure gauges, range 0.01-40.00 MPa, accuracy 0.01MPa |
|||
Pressure mode |
Manual pressurization/manual slow pressurization |
|||
Pressure stability |
≤1MPA/10min |
|||

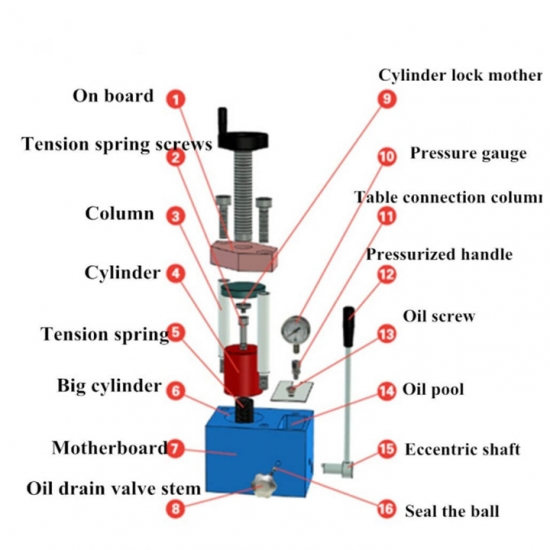

Overall structure |
One-piece structure, tightly connected equipment, reduce oil leakage points |
|||
Worktable diameter |
Dia80mm |
Dia80mm |
Dia80mm |
Φ90mm |
Working space |
96*130mm |
96*130mm |
96*130mm |
140*150mm |
Overall dimension |
225*155*380mm |
225*155*380mm |
225*155*380mm |
245*175*390mm |
Weight |
28kg |
28kg |
28kg |
38kg |
Note |
Two column tablet press, column height can be customized; Optional "S" digital pressure gauge; Optional mold; Accuracy 0.01 MPa, more accurate pressure control |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
