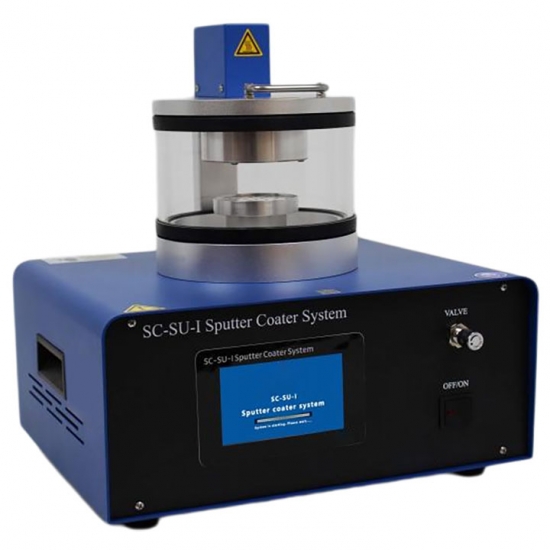

Louis@lithmachine.comLab Vacuum Magnetron Sputter Equipment for Numerical Simulation and Fabrication of Perovskite Solar Cells
Key Features：
1. 4.3-inch full-color touch screen design, LCD screen real-time vacuum degree display, real-time display of sputtering current, voltage, vacuum degree and other parameters.
2. Suitable for various metal targets, with a diameter of 50mm and a thickness of 1-2mm. It is convenient to replace the target. The formula is saved by default for next operation.
3. It can pass various inert gases, nitrogen, argon, etc., and the air intake volume is adjustable.
Magnetron Sputtering Specifications （SC-SU-I）
|
Size of quartz chamber |
150X120MM |
|
Sample size |
70mm |
|
Sputtering size |
50mm |
|
Maximum vacuum |
5pa |
|
Gas usable |
Inert gases such as hydrogen, nitrogen, etc. |
|
Maximum sputtering speed |
8nm/min |
|
Power |
200W |
|
Dimension |
360(W)X310(D)X150mm(H) |
|
Relative humidity |
< 85% |
|
Ambient temperature |
0-40℃ |
|
Warranty |
1 year |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
