Louis@lithmachine.comLab Scratch Resistant Quartz Glass Vacuum Magnetron Ion Sputtering Coater for Fabrication of Perovskite Solar Cells
Introduction

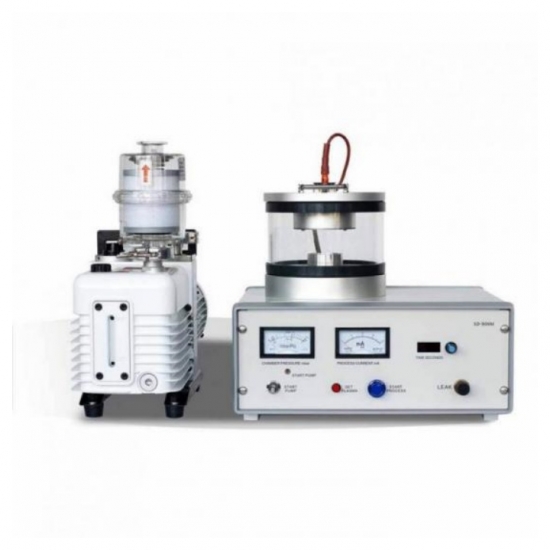

Magnetron Ion Sputtering Coater (SD900M Model) is ideal and designed for lab SEM sample preparation. It is widely used to coat non-conductive or heat-sensitive SEM samples with Au for better imaging. It is also excellent for surface treatment and avoids damage to the substrate sample.
Coating Result Sample Picture under SEM (by SD-900M Model) EPTFE (Extended Poly Tetra Fluoro Ethylene)
Low vacuum, can be achieved quickly when using proper vacuum pump within 5 minutes. It generates much less heat and avoids plasma damage to the substrate sample. It is user friendly and easy to operate.
Vacuum pump is included. Chiller is optional.
Parameter
|
Vacuum pump set |
(Oil required) rotary vacuum pump |
|
Rotary pumping speed |
50 Hz : 8 m³/h (2.2 L/s)/ 60 Hz : 9.6m³/h (2.6 L/s) |
|
Vacuum limit |
2 Pa |
|
Max sputtering current |
100mA |
|
Working pressure |
20Pa - 8 Pa |
|
Vacuuming time |
<5 Min(2 Pa) |
|
Vacuum measure |
Measuring range from atmosphere to 2*10-2mbar |
|
Chamber size |
Φ150*120mm (height) scratch resistant quartz glass |
|
Magnetron target source |
Target size φ50*0.1mm(Au)/target source: Au,Ag,Pt |
|
Operation method |
Instruction Manual |
|
Weight/size |
45kg/360mm length x 300mm wide x 380mm high |
|
Power supply |
AC 110V 60Hz or AC 220V 50Hz |
|
Power consumption |
<1500W |
|
Cooling method |
Water cooling(optional) |
|
Warranty |
One year limited warranty with lifetime product support |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
