Lab Rotational Digital Viscometer for Measure the viscosity of slurry and record the viscosity



I. Working principle and Application

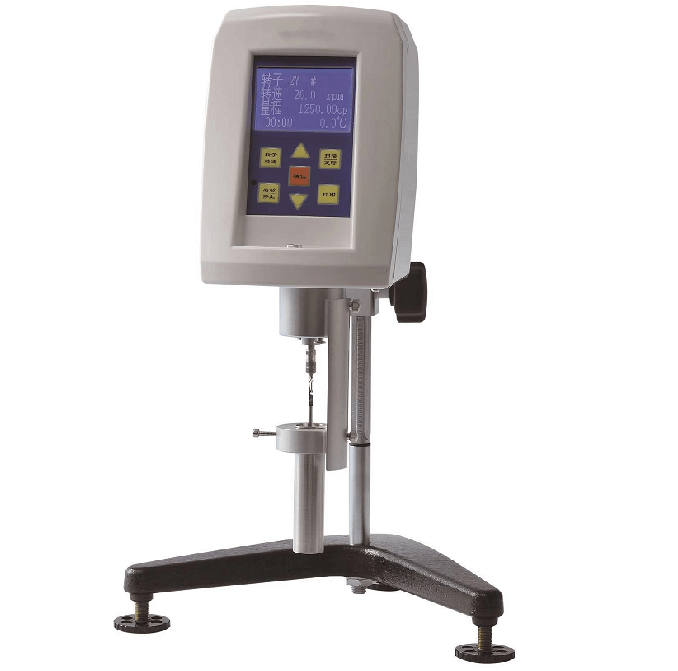

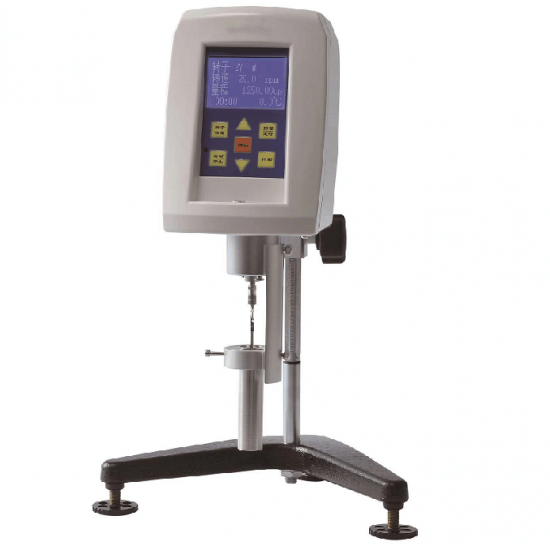

LVDV - 1T series viscometer is intelligent instrument based on ARM technology, to achieve full screen operation, to replace the traditional mode of operation of the traditional buttons plus small size LCD screen. This series has high performance stepper motor and driver, according to the procedures set accurately and smoothly running, the motor driven by constant speed rotation torque sensor the rotor. When the rotor in the measured by liquid viscous resistance, and force feedback to the torque sensor, through the corresponding internal processing and operation, the viscosity of the fluid to be measured data can be displayed.



Compared with similar instruments, this series of instruments has the advantages of convenient operation, intuitive reading, rich content, high measuring accuracy, stable speed, strong anti-interference performance, working voltage [100~240v (50/60Hz)] and so on.



In terms of the use of the instrument operation, the instrument has a series of measurements for the full-scale value 100% range overflow function, alarm display, automatic scanning function, the user can rely on these, intuitive, fast, and accurate rotor speed combinations available to choose the right, and can save the test conditions to determine, convenient and use the fast out of the testing process in the production of the day.



This series of equipment widely used in solvent based adhesive, latex, biochemical products, cosmetics, paint, paint, ink, paper pulp, food, starch and other industries.



II. Main technical performance

model

TMAX-LVDV-1TS

Control / display mode

5 inch color touch screen

speed(r/min)

0.3,0.6,1.5,3,6,12,30,60

And 0.5,1,2,2.5,4,5,10,20,50,100

measuring range (mPa.s)

1 –2,000,000 mPa.S



<10 Optional 0# rotor

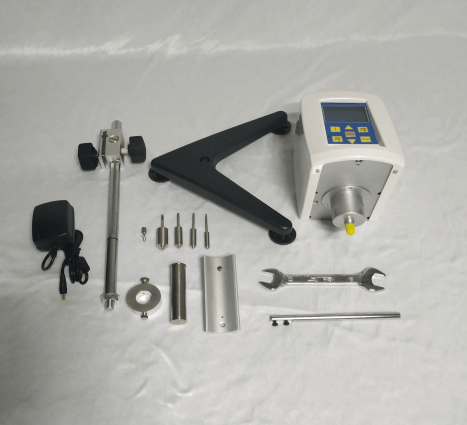

rotor

1 - 4#(Standard)

0# (Optional)

Measurement range (Newton liquid)

±1%

Repetition error (Newton liquid)

±0. 5%

Timing function

standard configuration

Automatic scanning

Automatic scanning and recommendation of the best combination of rotor and speed

Display the maximum measurement range

The range of viscosity can be measured by the combination of the selected rotor and rotational speed.

Auto display kinematic viscosity

Required input sample density

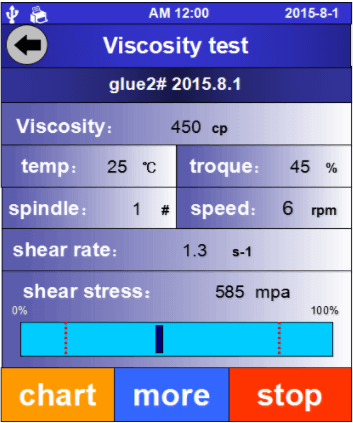

Display shear stress / shear rate

Standard

Auto display kinematic viscosity

Required input sample density

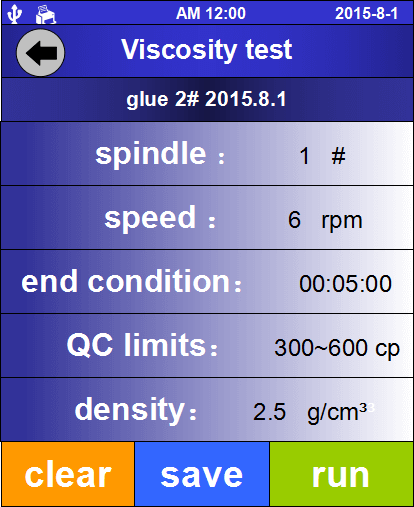

Self built measurement procedure

Can save up to 30 groups (including the rotor, speed, temperature, time, etc.)

Save measurement results

Can save up to 30 sets of data (including viscosity, temperature, rotor, speed, time, density, kinematic viscosity, etc.)

Viscosity curve

real-time display

Print output

The data curve can print (standard print interface, to buy a printer)

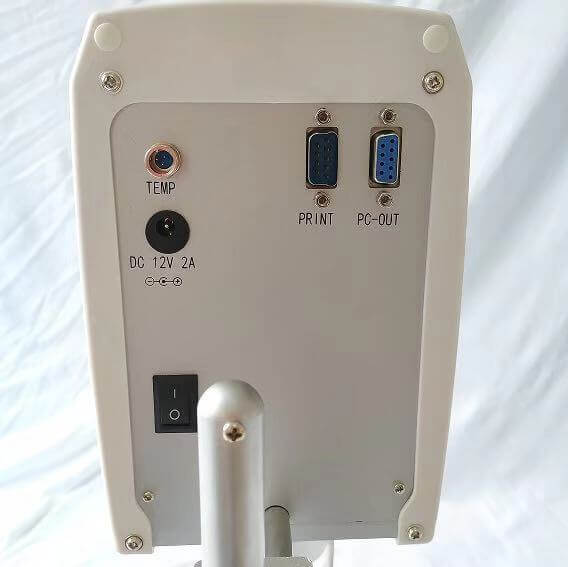

Data output interface

Standard

Constant temperature unit

Options (including all kinds of special thermostat thermostatic cup viscometer.)

Working power supply

110V / 60Hz   0r  220V / 50Hz

Outline dimension

300 × 300 × 450(mm)

Package size

420*340*330mm

Package weight

8kg



III. Using environmental requirements

Ambient temperature: 5 ~ 35

Relative humidity: less than 80%

Power supply: AC100 ~ 240V (50 / 60Hz)

There is no strong electromagnetic interference, no corrosive gas, no violent vibration.












PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
