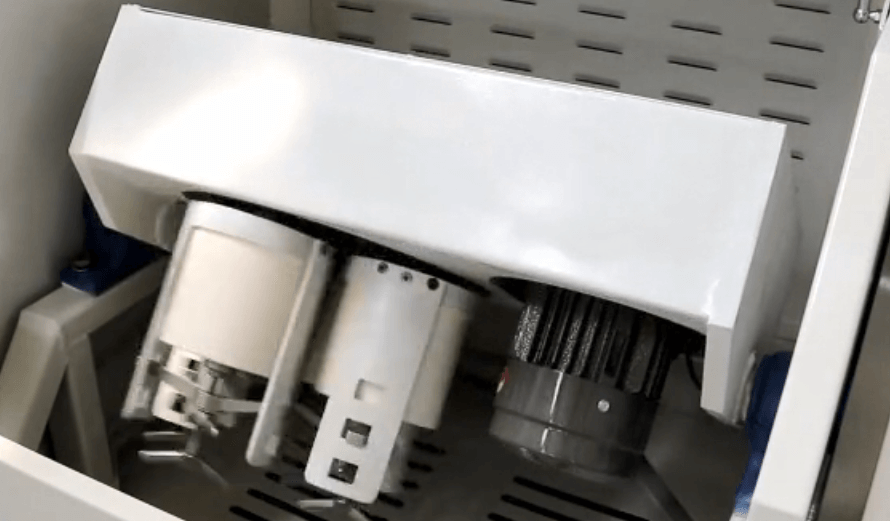

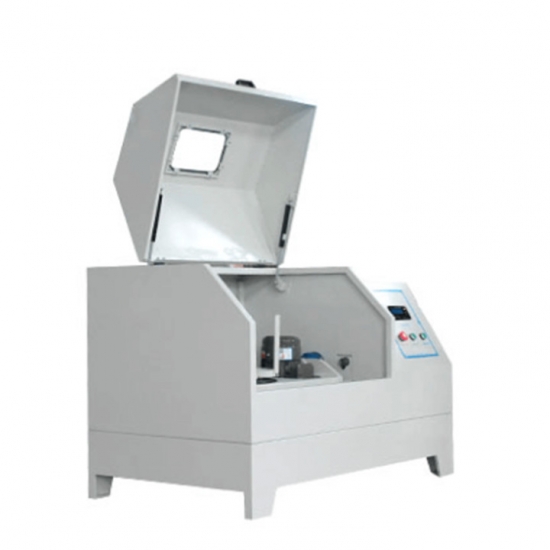

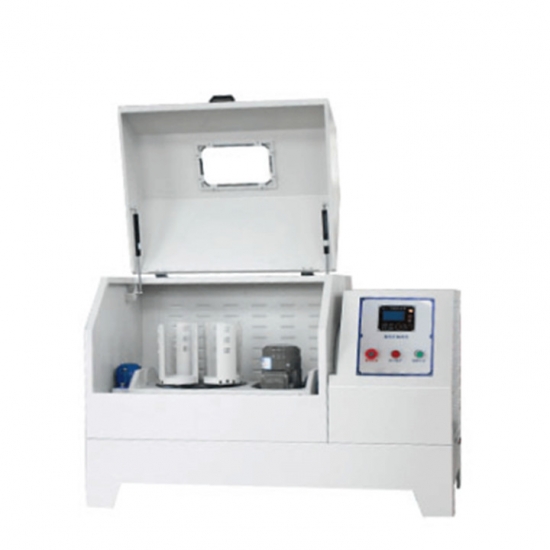

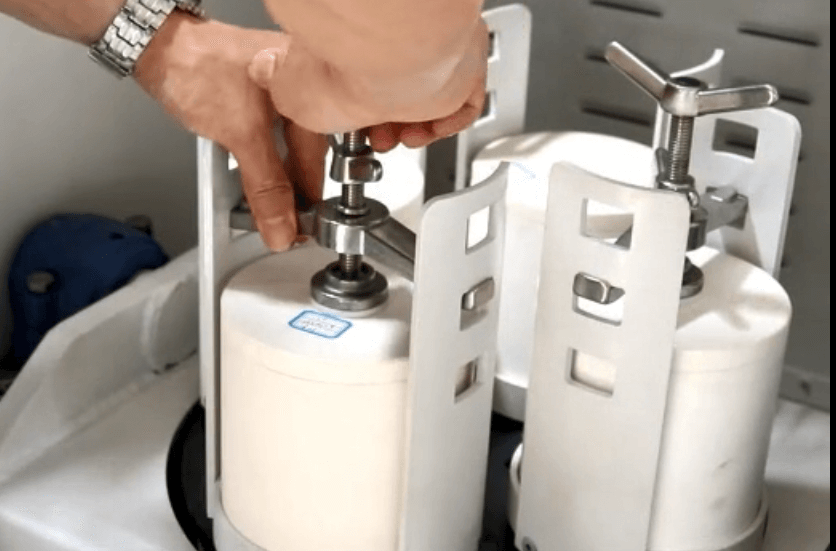

QXQM series planetary ball mill has four ball grinding tanks installed on one disc. When the turn disc rotates, the mill pots revolve on their own axis and make 360 degree rotation. And the balls in the tanks grind and mix samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of ground samples can be as small as 0.1 micron meter. It is widely used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.
Features

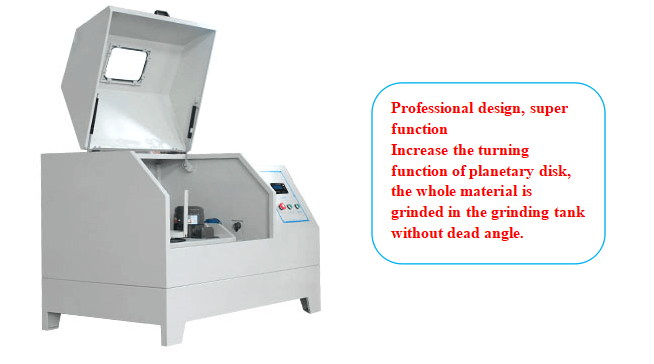

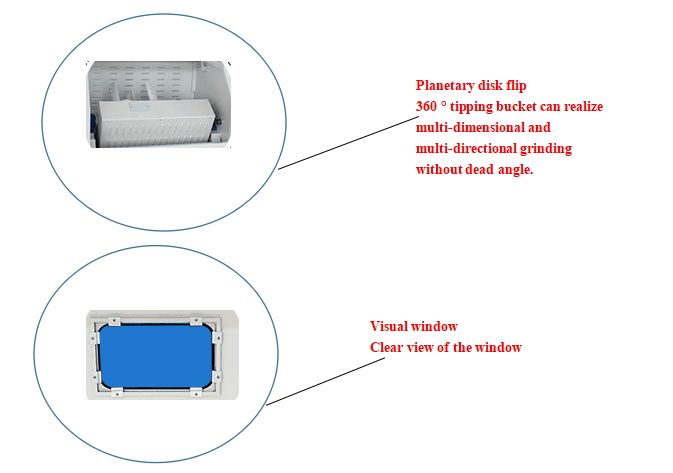

1. The machine makes 360 degree planetary movement without any dead corner, so the ground powder is much smaller and more even.

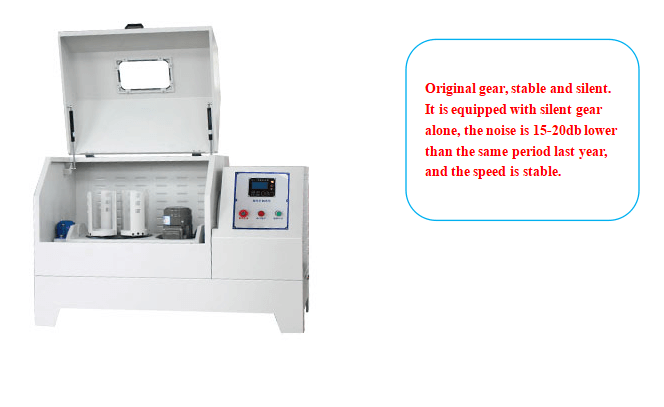

2. Gear transmission ensures to keep consistency and repeatability of experiment.
3. You may get four different powder samples at one time.

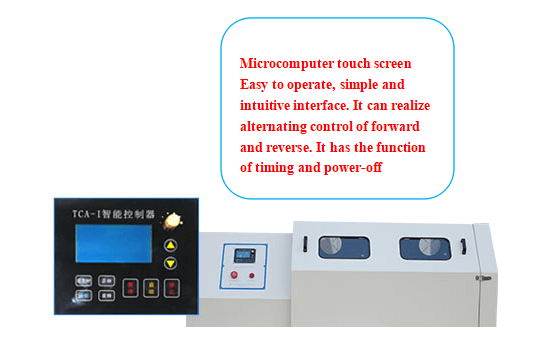

4. Variable frequency controlled and program controlled.
5. It solves the problems of materials sinking and sticking to the pot.
Advantages:
A wide range of powder can be ground by our planetary ball mill with different mill jars and balls, such as ore powder, fluorescent powder, glass powder, pigment powder and so on. Following are some powder samples for your reference.
Specifications
|
Drive Mode |
Gear drive |
|
Operate Mode |
Two or four grinding jars working together |
|
Maximum Loading Capacity |
2/3 of the total volume of milling jars |
|
Feeding Size |
Soil material≤10mm,other materials≤3mm |
|
Output Granularity |
Smallest granule reaches 0.1μm |
|
Rotational Speed Ratio |
1:2 |
|
Max.Continuous Operating Time |
48 Hours |
|
Materials of Jar |
Stainless steel.agate,nylon,corundum,zirconia,etc |

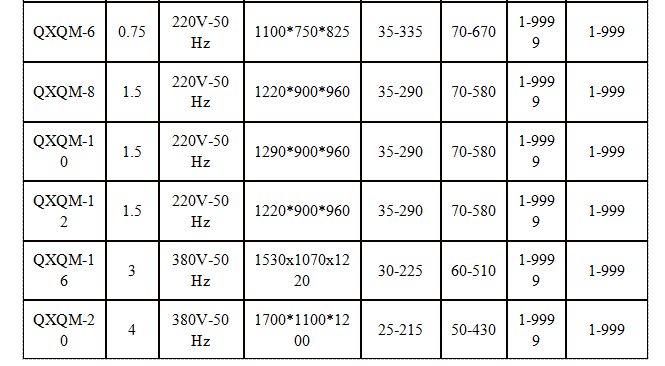

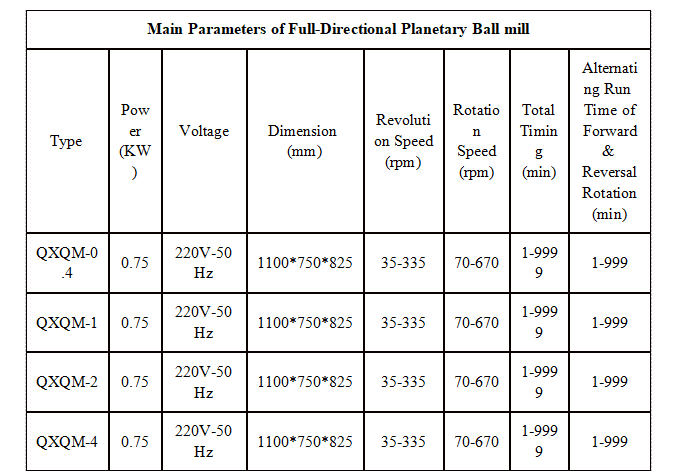

Main Parameters of Full-Directional Planetary Ball mill
Accessories of Mill Jars & Balls fo powder grinding ball mill

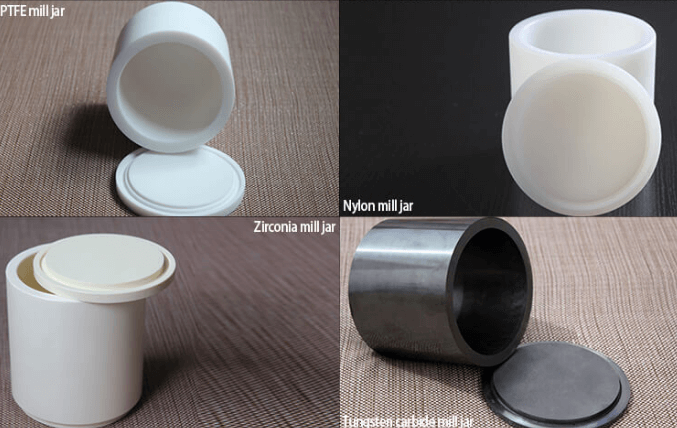

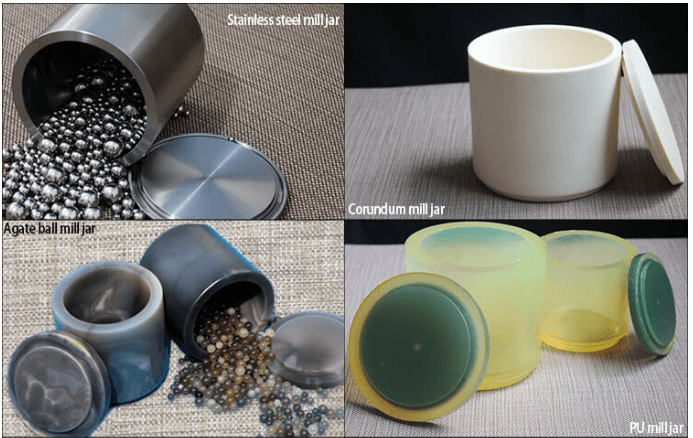

Besides the planetary ball mill machine, our factory provides all kinds of mill pots,like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.

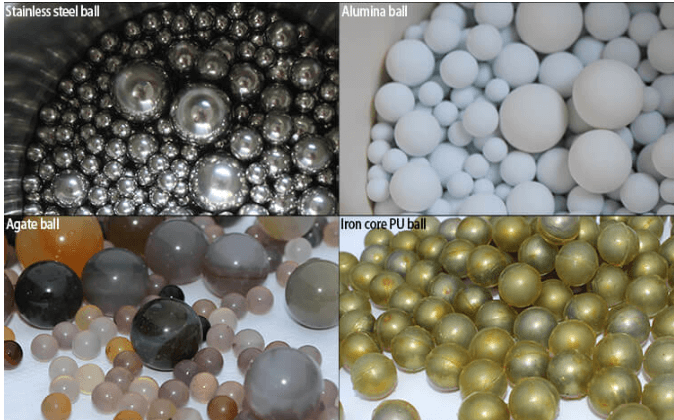

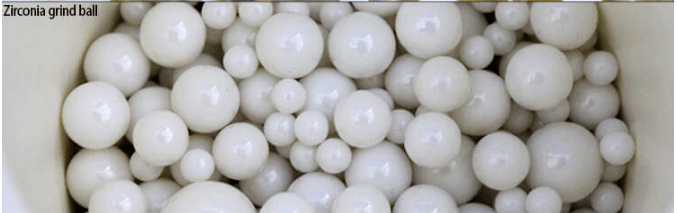

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
