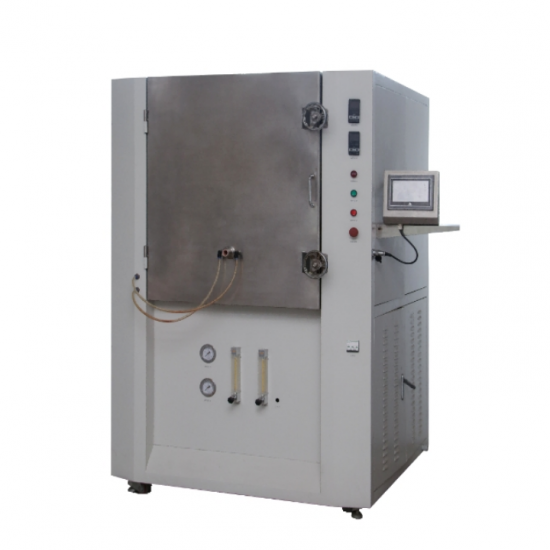

Louis@lithmachine.comLab Microwave High Temperature Atmosphere Sintering Furnace with Air Cooling System
Product introduction
Microwave high temperature atmosphere sintering furnace is a kind of high temperature microwave heating device with wide functions, which can be used in the laboratory.The equipment is suitable for sintering, synthesis, calcination, roasting and heat treatment of materials under various atmosphere conditions (including air, oxygen, nitrogen and argon and other inert gases), with strong flexibility and practicability.
Scope of application
Suitable for all kinds of colleges and universities, research institutes, laboratories of enterprises, such as:
1. High temperature synthesis of lithium anode materials, solid electrolyte and other battery materials;
2. Sintering of electronic ceramic devices;
3. Inorganic powder synthesis;
4. Sintering of structural ceramic parts;
5. Synthesis of nitride and carbide materials;
6. High temperature sintering, synthesis and heat treatment of other materials.
Product characteristics
Operating system: LCD touch screen, windowsCE operating system;
Multi-stage temperature control: temperature rise and insulation curves can be set freely;
Gas control: dual rotameter, accurate ventilation/gas directly into the sample surface, more direct and rapid reaction;
Temperature zone control: up and down double temperature zone, even number display thermometer;
Intelligent control: built-in intelligent program, digital independent setting, one-click start;
Safety protection: mechanical part and electronic control part of the multipoint multipoint microwave system protection to ensure safety;
Equipped with water cooling: the equipment is equipped with a special circulating water cooler.
Product parameter
|
Rated input power |
≤26KW |
|
Microwave output power |
3-15.6kW continuously adjustable |
|
Microwave output frequency |
2.45GHz ±25MHz |
|
Maximum sintering temperature |
1550℃ |
|
Sintering atmosphere |
Air atmosphere, protective atmosphere, nitrogen atmosphere |
|
Temperature measurement method |
Thermoelectric couple |
|
Temperature control mode |
Automatic/manual setting, curve display, data recording, USB interface |
|
Microwave leakage intensity |
<1mW/cm² (much lower than Chinese and international microwave energy standards) |
|
Protection system |
Furnace overtemperature protection, magnetron overtemperature protection, undercurrent protection, overcurrent protection, microwave leakage protection |
|
Furnace cooling |
Air cooling system |
|
Effective sintering space |
Width × depth × height =375×360×500(mm) |
|
Overall dimensions of equipment |
Length × width × height =1800×1400×1950(mm) |
|
Gross weight of equipment |
400kg |
|
Configuration requirements |
A high-precision microwave leak detector is randomly configured |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
