ItemNo :
LITH-RYJ-600FMOQ :
1Warranty:
2yearsDelivery Time:
5 daysEmail :
Louis@lithmachine.com

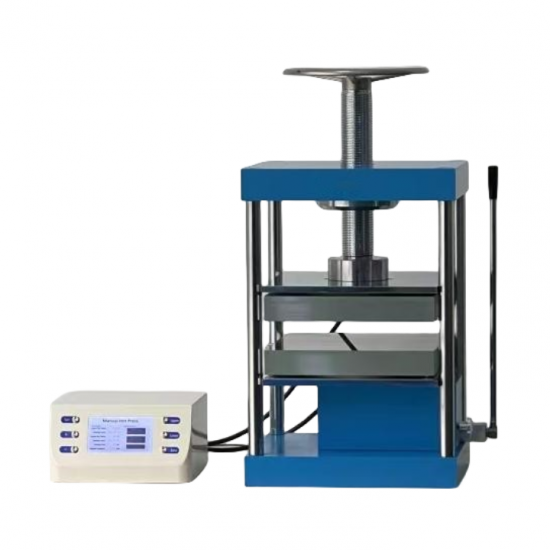

RYJ-600F series double plate heat press is a split type and widened heat press developed by our company based on the original manual heat press based on the market demand. This machine meets the needs of customers who need large-tonnage and large-area sample heating, and can be used for high-temperature and high-pressure compression experiments on powder samples, granular samples, plastic films, rubber products and other samples.
Main Parameter
|
Device model |
RYJ-600F3 |
RYJ-600F4 |
RYJ-600DF3 |
RYJ-600DF4 |
|
Pressure range |
0-30T(0-31.5Mpa) |
0-40T(0-30Mpa) |
1-30.0T/0.1t |
1-40.0T/0.1t |
|
Pressure conversion |
1T-1.05Mpa |
1T=0.75Mpa |
No conversion required |
|
|
Pressure gauge type |
Pointer pressure gauge |
4.3 inch LCD screen display |
||
|
Pressurized method |
Manual pressurization/compensation |
Electric pressurization - program pressure maintaining/replenishing pressure - timing pressure relief |
||
|
Compress time |
Manual |
0-999.59（mins/sec.） |
||
|
Thermostat type |
XNNETS PLC Program temperature controller |
|||
|
Thermostat temperature control range |
Room temperature-600°C,accuracy 0.1°C |
|||
|
Mold heating temperature |
Room temperature-300.0°C(500°C high temperature mold can be customized) |
|||
|
Hot pressing mold size |
300*300mm |
400*400mm |
300*300mm |
400*400mm |
|
Power |
220V/2500W |
220V/5000W |
220V/3000W |
220V/6000W |
|
Host size |
380*350*600mm |
500*480*650mm |
380*350*600mm |
500*480*650mm |
|
Mold cooling method |
Water cooling cycle rapid cooling (water cooler optional) |
|||
|
Insulation of equipment |
Imported heat insulation board |
|||
|
The whole frame |
Split structure |
|||
|
Model Description |
Customized products, the above data are for reference only! Various heat presses can be customized according to user needs |
|||
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
