Lab Compact Planetary Ball Mill with Optional 50-5000mL Jars

Lab Compact Planetary Ball Mill with Optional 50-5000mL Jars

  • ItemNo :

    LITH-DSP-LBPBM06
  • MOQ :

    1
  • Warranty:

    One years limited warranty with lifetime technical
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details

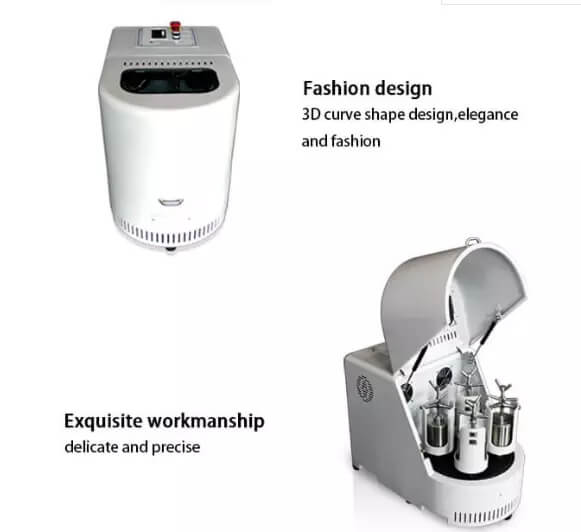

 Lab Compact Planetary Ball Mill with Optional 50-5000mL Jars

Features

Planetary Ball Mill designed for mixing, fine grinding, and preparing small volume high-tech material production, which features with small volume, high efficiency, low noise and Lock clamps. If choosing with optional vacuum jar, it can grind samples under the vacuum condition or filled with inert gas. The product is extensively used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, and Environmental Protection, etc.



Specifications


Model



Capacity



Specification of milling tank



XQM-0.2



0.2L



50ml

XQM-0.4



0.4L



50ml-100ml



XQM-1



1L



50ml-250ml



XQM-2



2L



50ml-500ml



XQM-4



4L



250ml-1L



XQM-6



6L



lL-1.5L



XQM-8



8L



1L-2L



XQM-10



10L



1L-2.5L



XQM-12



12L



1L-3L



XQM-20



20L



2L-5L

XQM-40



40L



5L-10L



XQM-60



60L



10L-15L



XQM-100



100L



20L-25L




Model

Planetary Ball Mill Machine

Grinding tank volume (L)

According to requirements



Grinding tank material

Maximum loading per tank

Material and grinding medium does not exceed two-thirds of the volume

Feeding material size

Soil material ≤ 10 mm, other materials ≤ 3 mm

Discharge material size

Min 0.1um

Rotating speed

Revolution 335r / min,

Rotation 670r / min

Speed ratio

 (revolution: rotation)

1:2

Speed mode

Frequency, programmable stepless speed regulation, manual, automatic timing forward and reverse

Transfer method

Gear drive

Working Voltage

220V

Way of working

Two or four tanks work at the same time

Maximum continuous operating time

72hours

Machine Size

750*470*564mm

Programmable control (electronic monitoring)

Ball mill using high-tech microcomputer chip control, can be set to forward and reverse alternately run(0-999min) and forward, pause, reverse, pause, forward (0-999min) alternate operation according to the procedure. Particularly suitable for cooling or intermittent operation.

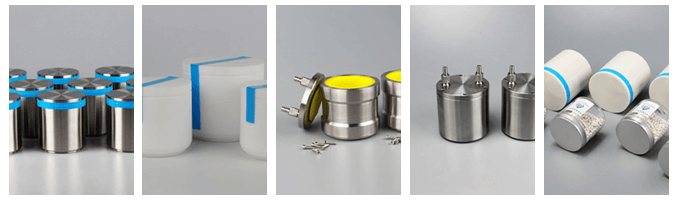

Besides the planetary ball mill machine, our factory provides all kinds of mill pots,like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.


 Selection

Planetary Ball Mill







































0.2L-200L total volume optional





















Pictures

 Name

Line











    Rolling Jar Mill




 https://www.lithmachine.com/lab-jar-roll-ball-mill-ultrafine-grinding-and-mixing-for-laboratory_p449.html









Vertical Planetary Ball Mill(Square )



https://www.lithmachine.com/Small-Planetary-Ball-Mill-Machine-For-Lab_p164.html







Horizontal Planetary Ball Mill



https://www.lithmachine.com/laboratory-horizontal-planetary-ball-mill-for-powder-making_p165.html







Air-cooling Function Planetary Ball Mill





https://www.lithmachine.com/Cryogenic-Planetary-Ball-Mill-With-Jars_p169.html









  Ball Mill for Production



https://www.lithmachine.com/industrial-untrafine-powder-planetary-ball-mill-for-production_p450.html



Full Directional Rotation Lab Scale Micron Fine Milling Powder Grinding Ball Mill


https://www.lithmachine.com/lab-rotation-scale-micron-fine-milling-powder-grinding-ball-mill_p172.html


Pouch Cell Process: Tube Furnace/ Muffle Furnace→ Vacuum Mixing→ Electrode Coating→ Roll press→ Electrode Cutting→ Vacuum Drying→ Cases Forming→ Top&Side Sealing→ Electrolyte Filling→ Vacuum Sealing→ Battery Analyzer




For the pouch cell assembly, we also recommend you the following items:








PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
