Louis@lithmachine.comLab Battery Vacuum Sealing Machines For Making Pouch Cells

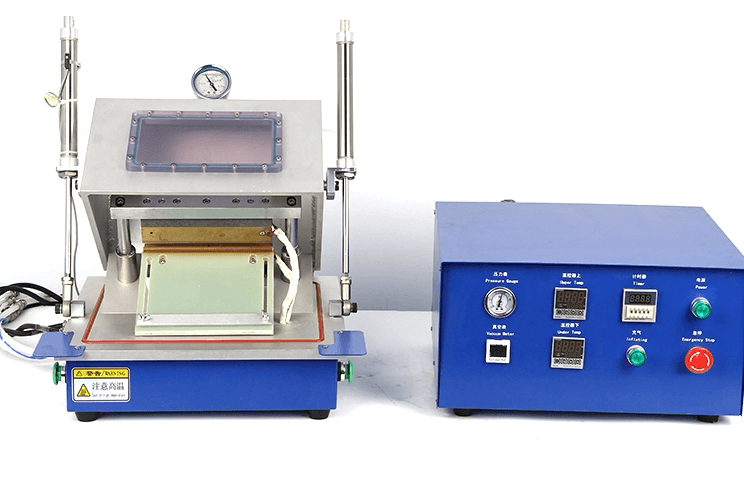

LITH-TCH-YF01 is a CE Certified compact vacuum sealer for sealing aluminum-laminated case in glove box after injection of electrolyte into pouch Li-ion cell or after formation of the final seal (polymer Li-Ion cell). Heatable sealer blade is built into the chamber.
SPECIFICATIONS:
|
Max. Sealing Dimensions |
200mm(L) x 150mm(W) |
|
Product Dimensions |
1. Sealing Unit with Chamber Closed: 470mm(L) x 435mm(W) x 485mm(H) 2. Control Unit: 420mm(L) x 325mm(W) x 225mm(H) |
|
Edge Sealing Width |
5mm |
|
Sealing Blade |
Hard type (without rubber, only for Al case sealing, not suitable for sealing case with tab in between) |
|
Power Supply |
110V or 208-240V selectable, Single Phase 50/60Hz |
|
Max. Power |
1500W |
|
Vacuum Level |
1. -100 kPa Max. 2. The vacuum pump is not included |
|
Sealing Pressure |
1. 0~7Kg/cm² adjustable: Vacuum chamber lid and sealing die need to be driven gas,Recommended driven gas pressure 60 psi. 2. Please use high purity inert gases (Ar or N2), when operating in glovebox. Using Air Compressor driven when operating outside the glove box. 3. Air Compressor and fitting are not included. Gas/Air tube size is 6. |
|
Sealing Temperature |
0 - 250°C adjustable with control accuracy of +/-2°C |
|
Heating Timer |
0 - 99 seconds Adjustable |
|
Net Weight |
50-60kg |
|
Compliance |
CE Certificate |
|
Warranty |
One Year limited warranty with lifetime support |
Pouch Cell Process: Tube Furnace/ Muffle Furnace→ Vacuum Mixing→ Electrode Coating→ Roll press→ Electrode Cutting→ Vacuum Drying→ Cases Forming→ Top&Side Sealing→ Electrolyte Filling→ Vacuum Sealing→ Battery Analyzer
For the pouch cell assembly, we also recommend you the following items:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
