Culture chamber 300 liters of space
Scope of application
The products is a special device for bacterial culture and operation in an anaerobic environment, which can cultivate the most difficult anaerobic organisms and avoid the danger of death caused by exposure to oxygen when anaerobic organisms operate in the atmosphere.
Product features
The product is composed of culture operation room, sampling room, air circuit and circuit control system, wax sterilizer and so on.
The product uses scientific and advanced means to achieve high precision in anaerobic environment, which is convenient for operators to operate in anaerobic environment and cultivate anaerobic bacteria. Using high precision digital display temperature control instrument, can accurately and intuitively reflect the actual temperature in the box, plus effective temperature limit protection device, safe and reliable. The box is equipped with ultraviolet sterilization lamp, the gas is filtered into the box, can effectively avoid bacterial pollution. A line device with arbitrary flow regulation. Can input any kind of gas required. The operating room is made of stainless steel plate. The viewing window is made of high strength glass. Operation using special gloves, reliable, comfortable, flexible, easy to use. The operating room is equipped with special inoculant rod sterilizer, wax melting disinfection device, and oxygen removal catalytic converter.
Technical parameters of anaerobic incubator
Model number |
YQX-II |
The temperature controlled range was used in the culture chamber |
Room temperature +5℃ -60 ℃ |
Temperature resolution of the culture chamber |
0.1 ℃ |
Degree of temperature fluctuation |
Plus or minus 0.5 ℃ |
Working hours |
Continuous |
The time of anaerobic formation of the sampling chamber |
<5 minutes |
The time of anaerobic formation of the operating room |
<1 hour |
Anaerobic environment maintenance time |
The operation chamber ceases to be supplemented with trace gas mixture for >12 hours |
Size of culture operation chamber (mm) L x W x H |
820 * 550 * 660 |
Dimensions (mm)L x W x H |
1200 * 750 * 1360 |
Working power supply |
220V 50Hz |
Power consumed |
1500W |
Operating interface |
Large LCD display in Chinese |

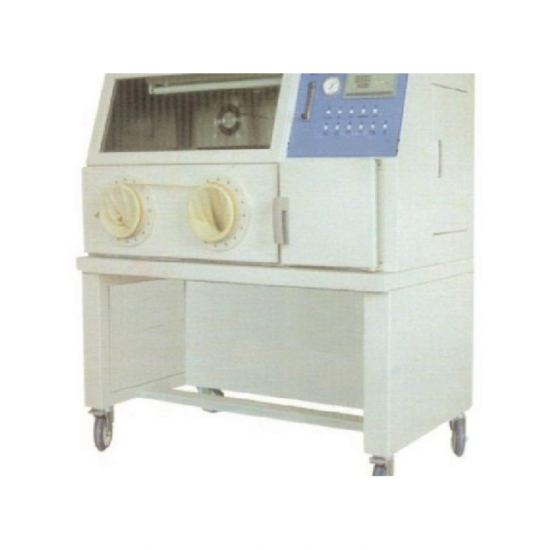

Note: The picture is for reference only and the color of the object shall prevail
