ItemNo :
LITH-MD400MOQ :
1Place of Origin:
ChinaColor :
optionalPort :
Xiamen PortCompliance:
CEWarranty:
2 yearsDelivery Time:
5 daysEmail :
Louis@lithmachine.comFeatures:
1. Stamping cutting die non cohesive gel.
2. Tight fitting No influence on automatic spot welding.

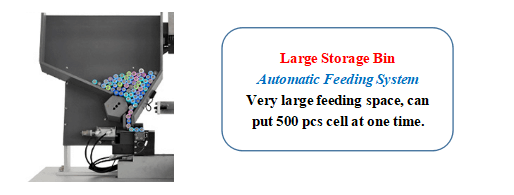

3. Hopper put in 500pcs High production efficiency easy to operate.
4.Stick Barley paper 4800pcs/Hour high stability.
Specifications:
|
Voltage/Power |
Single-phase 220V,50Hz, 1500W
|
|
Air Pressure |
0.4-0.8Mpa |
|
Material Specification |
Barley paper |
|
Maximum Breadth |
100mm paper Total thickness:0.3mm |
|
Charging Pattern |
Put in Batteries disposable put in 500PCS |
|
Production Efficiency |
4800pcs/hour, single pad 4pcs |
|
Size(L xW x H) |
1000x700x1630mm |
|

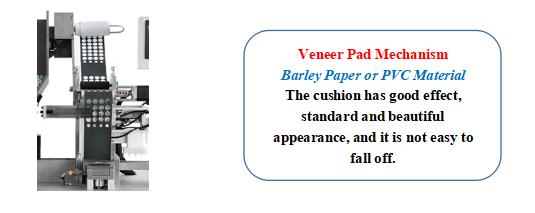

Surfact Mat Material |
Barley paper or PVC |
|
Control Device |

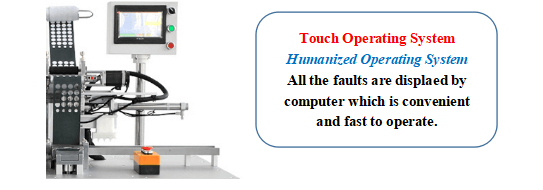

7 inck Touch Screen PLC programming unit and stepper motor |
Equipment Configuration:
|
Serial No. |
Spare Parts |
Brand |
|
1 |
Air Cylinder |
SMC、CKD |
|
2 |
Solenoid Valve |
SMC、Airtac |
|
3 |
Linear Guide Rail |
TPI |
|
4 |
Electric Relay |
OMRON |
|
5 |
PLC |
TouchWin |
|
6 |
Inductorium |
OMRON、SUNX |
|
7 |
Stepper Motor |
Lesev/Inovance |
|
8 |
Servo Motor |
Fuji/Panasonic |
|
9 |
Support Base |
NSK |
|
10 |
Lead Screw |
HIWIN |
Advantages:
1 . Stickers pasted stable, consistent, and long lasting.
2. Automatic failure alarm.
3. Easy to program, adjust, and opertate for new hands.
4. High Efficiency, fully automatic, saving labour cost.

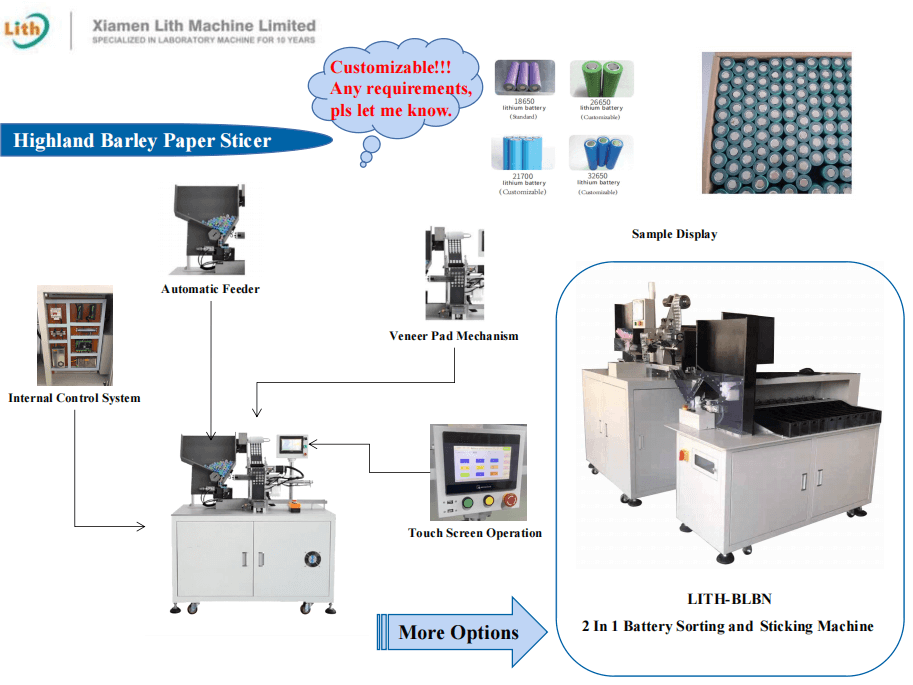

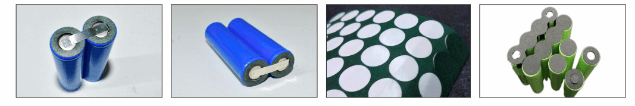

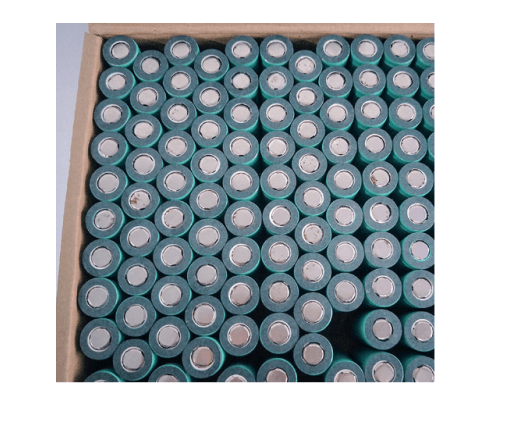

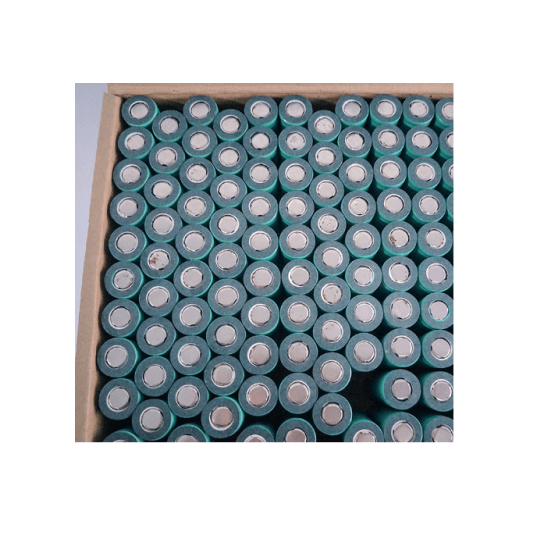

Sample Display:
Details:
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
