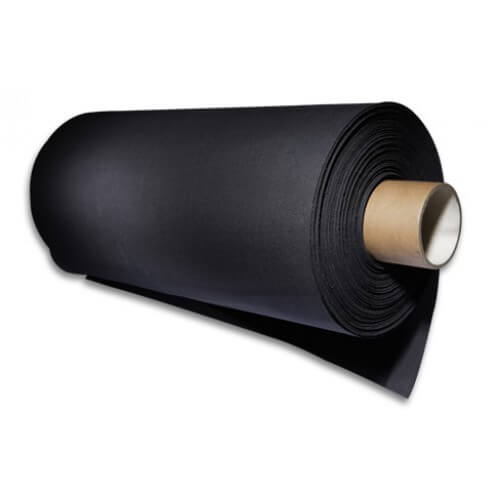

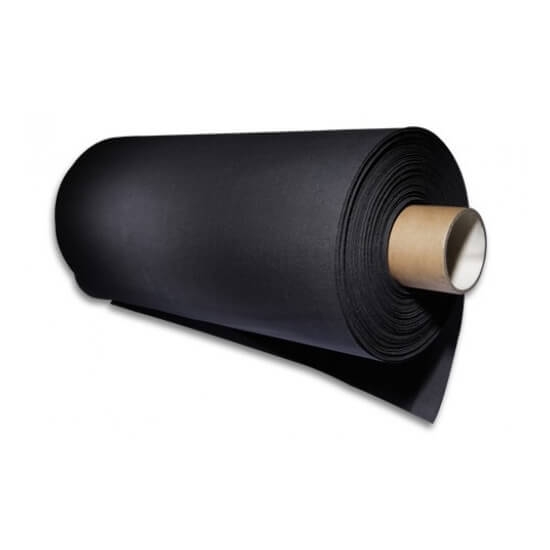

CeTech is a woven carbon cloth with a Microporous Layer (MPL). It has a total thickness of 365 um (microns). CeTech is a great low-cost alternative to conventional woven carbon cloth Gas Diffusion Layer (GDL) materials.
Advantages of CeTech Carbon Cloth:
Stable MPL slurry with sophisticated coating technology
High compressibility (up to 100kg/cm²)
Automated QC inspection system
Reduce catalyst slurry permeation
Avoid “flooding”
| Material Type | Woven Carbon Fiber (cloth) |
| Thickness | 0.365 +/- 0.015 mm (365 +/- 15 microns) |
| Basic Weight (g/m²) | 175 +/- 5 |
| Air Permeability (s) | < 27 |
| Electrical Resistivity (through plane) | < 14 mΩcm² |
| PTFE Treatment | Yes |
| Microporous Layer | Yes, on one side |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
CarbonFoam is a carbon cloth gas diffusion layer (GDL) coated with a microporous layer. Such a gas diffusion layer is engineered to have state-of-the-art performance over a wide range of operating conditions and it can serve as a catalyst support for organic electrochemistry, metal-air battery, fuel cells batteries, electrolyzers and more.
