ItemNo :
LITH-BallM01MOQ :
1Warranty:
One years limited warranty with lifetime technicalDelivery Time:
5 daysEmail :
Louis@lithmachine.com

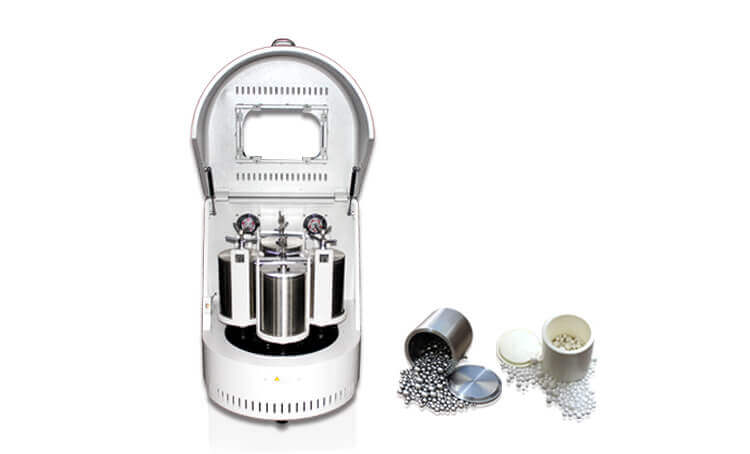

Explanation and Principle of Planetary Ball Mill
Planetary Ball Mill designed for mixing, fine grinding, and preparing small volume high-tech material production, which features with small volume, high efficiency, low noise and Lock clamps. If choosing with optional vacuum jar, it can grind samples under the vacuum condition or filled with inert gas. The product is extensively used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, and Environmental Protection, etc.
When the plate rotates, the tank axis makes the planetary rotation in opposite directions and the balls in the tanks grind and mix samples in high-speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. (Note: granularity of grand products is dependent on the material properties, size, and quantity of milling media and processing time. According to customer's feedback, minimum granularity can be as small as 0.1 um).
Application Field
The product is extensively applied in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.
It's widely used in research institutes, universities, enterprise laboratories and small batch producing manufacturer.
Grinding Materials
Electronic ceramics, structural ceramics, magnetic materials, LCO, LMO, catalyst, fluorescent powder, E-glass powder, fuel cell, zinc oxide varistor, piezoelectric ceramics, nano materials, MLCC, PTC, NTC, media ceramics, fluorescent powder etc.
SPECIFICATIONS
|
Model |
Lith-BallM01 |
|
Grinding tank volume (L) |
According to requirements |
|
Grinding tank material |
According to requirements |
|
Grinding media |
According to requirements |
|
Maximum loading per tank |
Material and grinding medium does not exceed two-thirds of the volume |
|
Feeding material size |
Soil material ≤ 10 mm, other materials ≤ 3 mm |
|
Discharge material size |
Min 0.1um |
|
Rotating speed |
Revolution 335r / min, Rotation 670r / min |
|
Speed ratio (revolution: rotation) |
1:2 |
|
Speed mode |
Frequency, programmable stepless speed regulation, manual, automatic timing forward and reverse |
|
Transfer method |
Gear drive |
|
Working Voltage |
220V |
|
Motor power and variable frequency power |
0.75Kw |
|
Way of working |
Two or four cans work at the same time |
|
Maximum continuous operating time |
72hours |
|
Machine Size |
750*470*564mm |
|
Weight(not include Jars and Ball ) |
80kg |
|
Programmable control (electronic monitoring) |
Ball mill using high-tech microcomputer chip control, can be set to forward and reverse alternately run(0-999min) and forward, pause, reverse, pause, forward (0-999min) alternate operation according to the procedure. Particularly suitable for cooling or intermittent operation. |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
