Heat Calendering Machine With Variable Speed Up To 150C For Coin Cell Research

Heat Calendering Machine With Variable Speed Up To 150C For Coin Cell Research

  • Product Details

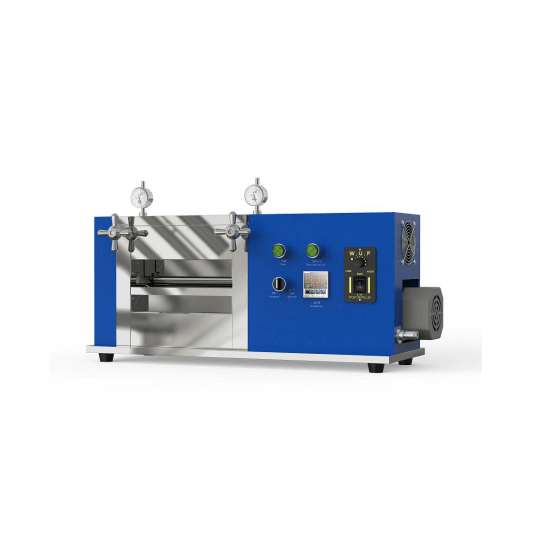

Heat Calendering Machine With Variable Speed Up To 150C For Coin Cell Research


Application

The Rolling Press Machine is designed for laboratory-scale rolling press of battery materials, small quantities of precious metals (gold, silver), and non-ferrous metals (copper, aluminum) under controlled heating conditions. It allows adjustable rolling thickness and simple operation, making it particularly suitable for thinning and increasing the density of lithium battery electrodes in clean energy applications.


Key Features

Heated rolling system, with adjustable temperature control displayed digitally.

Selectable heating or non-heating operation for flexible processing.

High-hardness rollers, surface chrome-plated for rust prevention, achieving HRC62 hardness.

Inclined wedge gap adjustment system, ensuring self-locking stability and high adjustment accuracy.

High rolling precision, with roller cylindricity ≤ ±2μm.

Vertical design, facilitating easy feeding of sheet and strip materials.

Gear-driven system, enabling precise rolling pressure.

Adjustable pressing thickness and speed, with a sleek and modern design.

Electric rolling system, supporting automated operation with forward and reverse rolling.

Compact size, ensuring ease of use and operational flexibility.


Specifications

Model

JS100L

JS150L

JS200L

JS250L

JS300L

JS330L

GY200W

Roller Dimensions

96mm(Dia.) x100mm(W)

96mm(Dia.) x150mm(W)

96mm(Dia.) x200mm(W)

96mm(Dia.) x250mm(W)

96mm(Dia.) x300mm(W)

96mm(Dia.) x330mm(W)

200mm(Dia.) x 200mm(W)

Working Voltage

110V - 240V AC, 50/60Hz, automatic switch for worldwide use

Structure

Heavy duty steel frame, gears, and handle
Dual micrometer for accurate thickness adjustment in the range 0 - 2 mm Maximum

Roller

1. Roller diameter tolerance: 0.004mm
2. Material: Made from hardened tool steel (RC > 62) with Cr electroplated coating
3. Rolling Speed: 0-40mm/s adjustable

Roller Surface Hardness

62 HRC
Never roll materials with hardness > 50HRC

Compliance

CE Certificate

Warranty

Two Years limited warranty with lifetime support

Warnings

1. Never roll materials with hardness > 50HRC
2. In order to prolong the lifespan of the roller bearings, regular lubrication is recommended.
3. Multi-step thickness calibration: When calibrating the thickness, make increment/decrement of 0.1mm or 20% of sheet thickness each time.
4. Must clean roller surface for each rolling and use acetone to clean and lubricate when not in use to avoid corrosion
5. This rolling machine can be used under Ar gas.



battery roller press

pouch cell roller press machine











Coin Cell Process:

Materilas → Powder Processing  →Powder Grinding Mill → Vacuum Mixing  → Electrode Coating → Roll Press  → Vacuum Drying  → Disc Cutter → Electrolyte Injection  → Crimping Machine  → Battery Analyzer



For the coin cell Assembly, we also recommend you the following items:









PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
