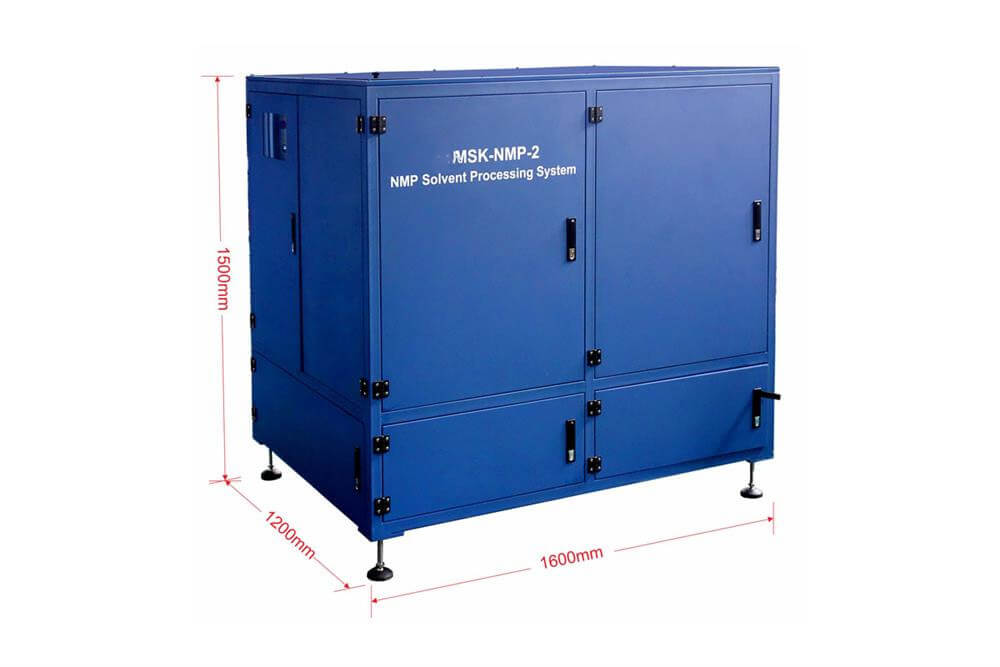

Dual-Filtration System for NMP(N-Methyl-2-pyrrolidone) Vapor of Li-ion Battery Coating
Features
LITH-MSK-NMP-2 is a CE Certified Dual-Filtration System for NMP(N-Methyl-2-pyrrolidone) Vapor of Li-ion Battery coating. It can be used to filter the vapor formed from the process of coating and drying with the dual-filtration level in Li-ion battery R&D. Water-filter design provides dedusting, NMP filtering, and vapor purification methods with the roll to roll coating.
Specifications
|
Structure |
SS 304 |
|
|
· Dual-filtration level · NMP filtering |
|
Working Voltage |
Three-phase AC380V 50 Hz/60 Hz |
|
Power |
2 KW |
|
Working Temperature |
0 - 40℃ |
|
Filling Gas Temperature |
<=150℃ |
|
Capacity |
1800 m³/h |
|
Recycle Rate |
>=80% |
|
Recycle Object |
Vapor |
|
Inlet Flow Rate |
1800mm³/h |
|
Product Dimensions |
1600mm L x 1200mm W x 1500mm H |
|
Compliance |
CE Certified |
|
|
· One-year limited warranty and lifetime support · Rusting and damage due to improper storage condition or maintenance are not covered by warranty |
|
Net Weight |
700 kg |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
NMP Solvent Processing System Waste Gas Treatment Equipment
NMP Solvent Processing System Dual-Filtration System for NMP(N-Methyl-2-pyrrolidone) Vapor of Li-ion Battery coating
