Desktop Dip Coater with variable Speed (1-200 mm/min)

Product Categories

Contact Us

  • Contact Person : Louis Yang
  • Email : Louis@lithmachine.com
  • Address : No. 5 Nanshan Road, Huli District, Xiamen City, Fujian Province, China
Desktop Dip Coater with variable Speed (1-200 mm/min) Desktop Dip Coater with variable Speed (1-200 mm/min) Desktop Dip Coater with variable Speed (1-200 mm/min) Desktop Dip Coater with variable Speed (1-200 mm/min) Desktop Dip Coater with variable Speed (1-200 mm/min) Desktop Dip Coater with variable Speed (1-200 mm/min)

Desktop Dip Coater with variable Speed (1-200 mm/min)

  • ItemNo :

    TMAX-PTLMM01

  • MOQ :

    1

  • Compliance:

    CE Certified

  • Warranty:

    1 year

  • Delivery Time:

    5 days

  • Email :

    Louis@lithmachine.com
  • Product Details

Desktop Dip Coater with variable Speed (1-200 mm/min)

Specifications

Dipping/Pulling

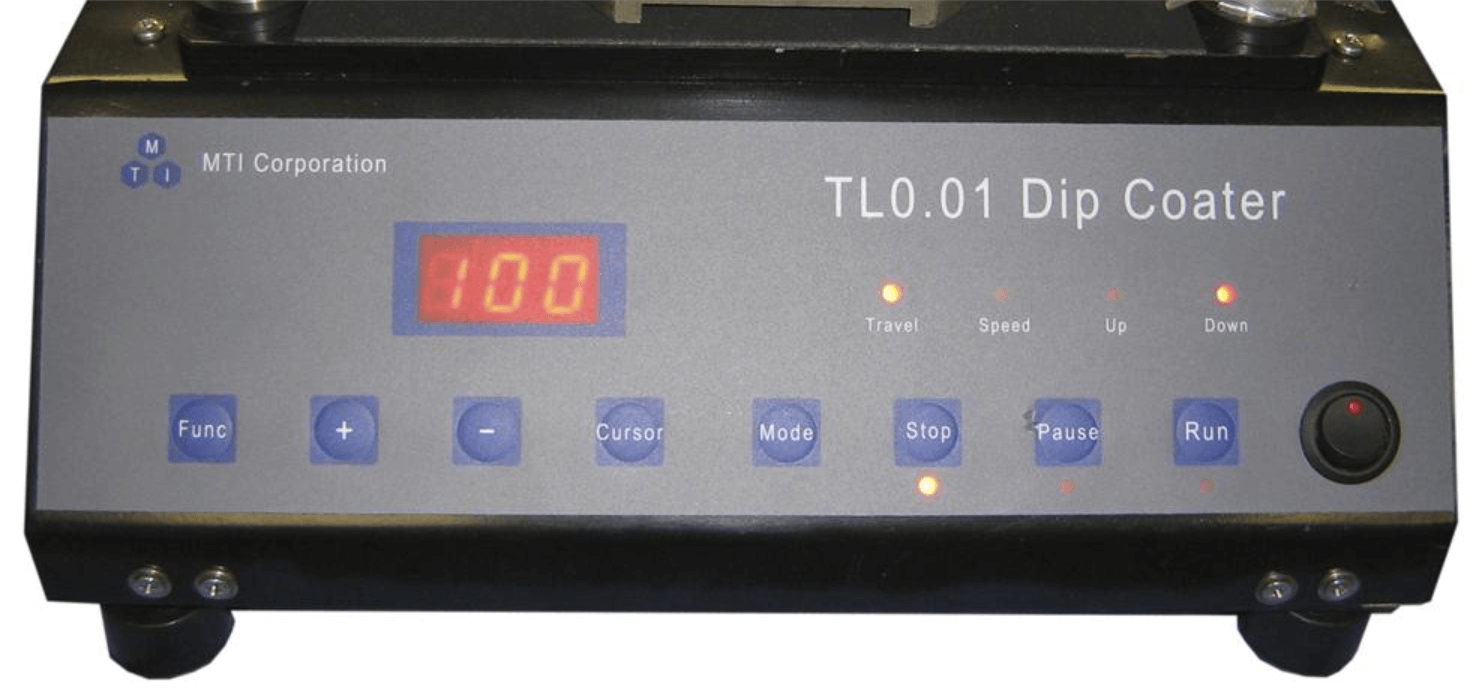

        · Dipping/Pulling Speed:1-200 mm/minute Adjustable via digital panel

         · Travel Distance:  0-200mm Adjustable via digital panel

Voltage

AC 110V/220V

Sample holder

       · Two screw sample clips are installed in the sample holder to carry the samples sliding up and down through one precision ball bear guide rod

       · (ball bear guide rod updated from Sep. 6, 2014)

Beaker Holder

The beaker which contains the coating material (coating solution) will be placed into the slot of the beaker holder

Solution container

One 150ml beaker is included

Max. Sample size

50mm(L) x 25mm(W) x 2.5mm(T)

Sample weight

Less than 250g

Dipping/Pulling Motor

DC Stepping motor

Product dimension

320mm(L) x 255mm(W) x 540mm(H)

Certificate

CE Certified

Warranty

One year limited with lifetime support




Application Notes

       · In order to get better film coating, the substrate shall be treated by plasma cleaner

       · Use ultrasonic processor to disperse nanopowder or homogenize solution to get better coating

Net Weight

45 lbs

Shipping Weight & Dimensions

67 lbs  40" x 23" x 26"









PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
