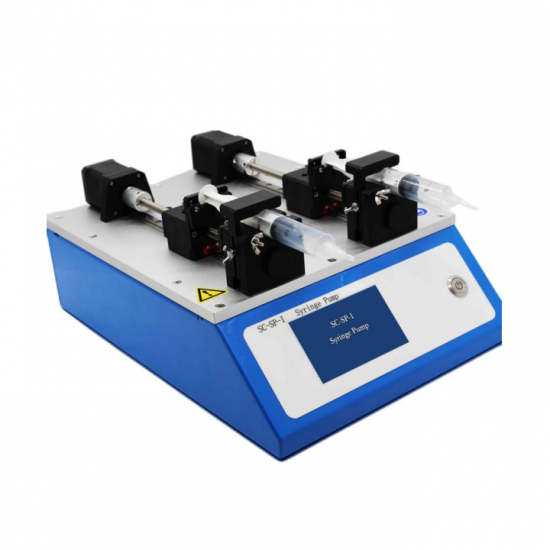

Desktop 40ML Dual Channel Injection Pump with Speed Adjustable
Product features:
1. Ultra-wide line speed range :10μm/min-65mm/min
2. Large stroke adjustment range :0-140mm
3. It can be used with KW series spin coater machine for precise and quantitative glue dropping
Product parameter
Number of channels
2
Maximum stroke
140mm
Stroke resolution
0.156 μm
Capacity
40ml(Single syringe 20ml)
Linear velocity range(flow rate)
10 μ m/min-65mm/min
Linear speed adjustment resolution
10 μ m/min
Stroke control accuracy
Error≤ ±0.5%
Rated linear thrust
> 90N
Power-off memory
Have
Relative humidity
< 85%
Ambient temperature
0-40℃
Warranty period
1 year
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
