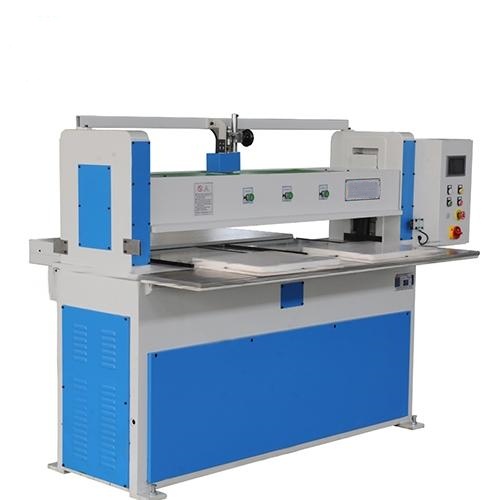

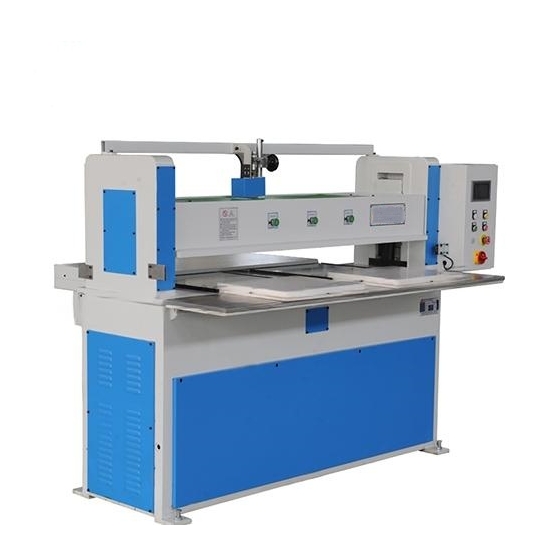

Louis@lithmachine.comAutomatic Hydraulic Plane Cutting Machine With Double Sliding Plate
Uses and features:
1, the machine is equipped with automatic sliding table, reducing the labor intensity of workers, fast speed, improve the work efficiency of about 30%.
2, specially designed oil circuit system, automatic slow cutting after pressing to the material, reduce the error between the upper and lower layers, reduce unnecessary slow travel, improve work efficiency.
3, the operation of the sliding table adopts frequency conversion speed control, stable operation, no impact.
4, the machine adopts PLC control, touch screen operation, simple operation, reliable operation.
5, the machine has a central oil supply lubrication system, which can fully lubricate the moving parts of the machine and extend the service life of the machine.
6, hands operation, safe and reliable.
7, special cutting tool height setting system, simple and reliable.
8, special specifications can be customized.
Main technical parameters:
|
Model number |
HSB300 |
|
Maximum cutting force |
300KN |
|
Width (mm) |
50-160 |
|
Cutting area (mm) |
1600×500 |
|
Stroke adjustment range (mm) |
5-100 |
|
Motor power |
2.2KW |
|
Feeding motor power |
0.37KW |
|
Machine weight (approx.) |
2000Kg |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
