ItemNo :
LITH-HSYT-300MOQ :
1Port :
Xiamen PortCompliance:
CE CertifiedWarranty:
1 Year limited warranty with lifetime supportDelivery Time:
Email :

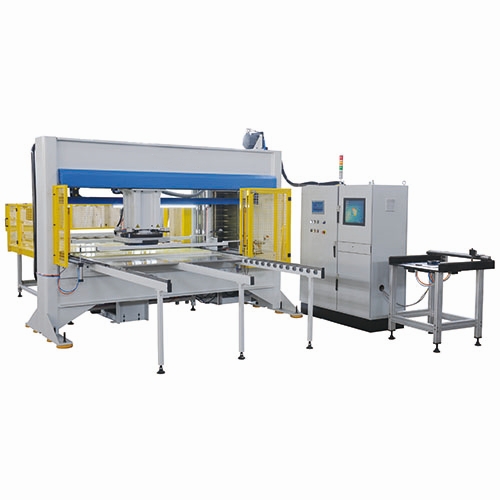

Louis@lithmachine.comAutomatic Continuous Die Cutting Beam Press Machine For Cloth/Footwear Cutting
Main uses and features
1. This cutting machine is suitable for continuous blanking of various non-metal roll and sheet materials by forming knife die, and can be applied to clothing, shoes and hats, bags and bags, toys, medical equipment, cultural goods, sporting goods and other industries.
2. The machine is controlled by the upper computer, with knife imitation shape, electronic graphic input, automatic typesetting function, and displayed on the screen, can accurately control the machine X, Y, Z, β four directions of the movement, the punch according to the position of the typesetting automatic punching.
Computer control, typesetting software typesetting
3. Specially designed oil circuit system, high pressure. Use flywheel energy storage to save energy. The punching frequency can reach 50 times/min.
4. The cutting machine is equipped with a tool library (the standard is equipped with 10 knives, which can be increased or decreased according to demand), which automatically changes the tool of different specifications and takes the material.
5. The machine has automatic bar code recognition function, which can automatically identify the tool mold according to the instructions of the computer to prevent errors.
6. The machine has a memory function and can store a variety of working modes.
7. The machine adopts rodless cylinder to control the entry and exit of the tool die, which runs smoothly and fast.
8. The machine adopts a sliding plate feeding mechanism with automatic circulation laying function, which can punch very thin and soft roll materials, and can also punch sheet materials.
9. Servo motor drive, accurate feed position; Servo motor drive, ball screw drive, to ensure accurate positioning of the punch; The servo motor is used to rotate the punch to ensure the accurate blanking position. The servo motor is used to control the position of the tool die in the tool library, which has high efficiency and accurate positioning.
10. There is a protective net installed around the machine and a safety light curtain installed at the discharge port to improve the safety of the machine.
11. German control systems
12. Special specifications can be customized.
Technical parameters
|
Model number |
HSYT-300 |
HSYT-350F |
HSYT-500G |
HSYT-800A |
|
Maximum cutting force (KN) |
300 |
350 |
500 |
800 |
|
Blanking area (MM) |
1600*1850 |
1600*1850 |
1600*1850 |
1600*1850 |
|
Punch size (MM) |
450*500 |
450*500 |
450*500 |
450*500 |
|
Adjustable stroke (MM) |
5-150 |
5-150 |
5-150 |
5-150 |
|
Total power (KW) |
10 |
12 |
15 |
18 |
|
Power consumption (KW/H) |
3 |
3.5 |
4 |
5 |
|
Machine size L*W*H(MM) |
600*4000*2500 |
6000*4000*2500 |
6000*4000*2600 |
6000*4000*2800 |
|
Weight (KG) |
4800 |
5800 |
7000 |
8500 |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
