Automatic Continuous Battery Electrode Slitting Slitter Machine For Cu/Al Foil Cutting
Introduction
Two or more continuous slitting process of roll-shaped material is adopted. The equipment is equipped with a precision knife holder, which can realize extremely high-precision foil slitting, and is widely used in lithium battery, metal foil, optical film and other functional film industries.
Main features
*Ultra-fine tungsten steel blade, good cutting quality and long service life;
*The slitting width has high precision, and the finished product has no burrs, waves, and indentations;
*The amount of knife can be adjusted, and the ratio of knife speed to material linear speed can be adjusted;
*By adjusting the angle of feeding and discharging materials, it can be adapted to the slitting of materials of different materials and thickness values;
*Single vertical board structure, independent knife holder, equipped with dust removal device;
*Upper and lower round knife structure, the slitting width can be adjusted by replacing the spacer;
*The winding tension is automatically controlled, and the upper and lower shafts are independently adjustable within 50N;
*PLC control, HMI operation, convenient and easy to use;
Technical parameters
|
Slitting method |
Single-piece rolling |
|
Cutter type |
Upper and lower round knives for cutting |
|
Width adjustment |
Change separator adjustment |
|
Cutting thickness |
100-300um |
|
Slitting blade |
Ultrafine alloy tungsten steel, diameter 100mm |
|
Slitting width |
20-300mm |
|
Burr condition |
≤25um |
|
Amount of the knife |
0.2-0.4mm adjustable, dial indicator display |
|
Slitting speed |
Max. 4m/min |
|
Power supply |
Voltage single-phase 220V AC±10%, frequency 50Hz/60Hz, power 1kW |
|
Environment |
Recommended environment temperature is 25±3℃, humidity is 30~90RH, no vibration and electromagnetic interference |
|

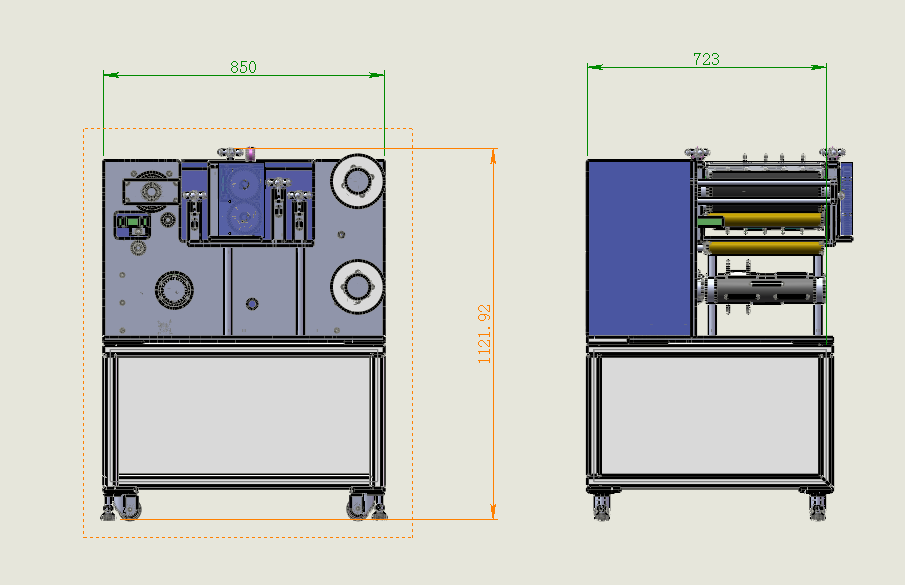

Dimensions |
L900mm*W980mm*H450mm |
|
Weight |
About 100kg |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
