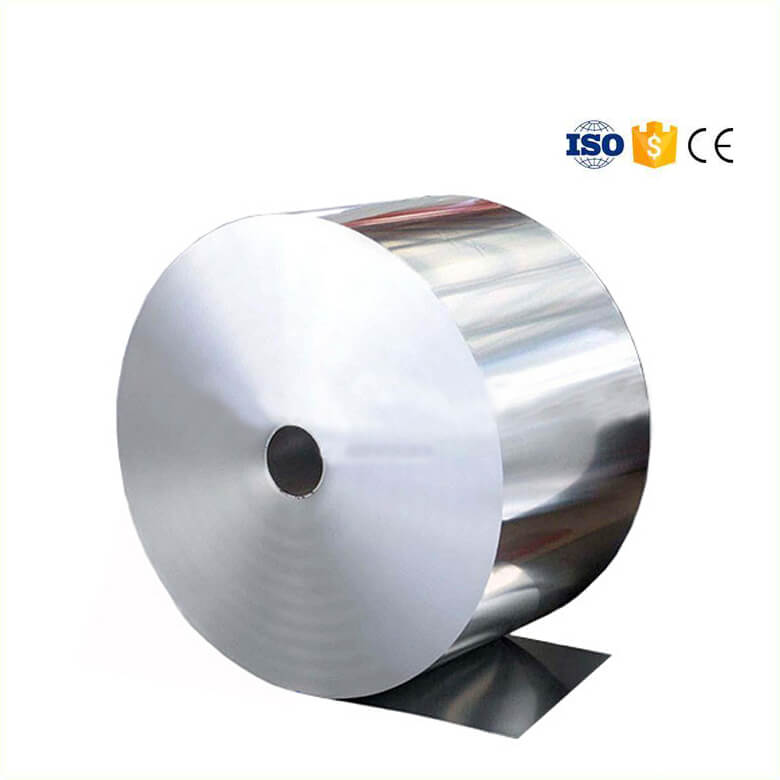

99.9% Purity Aluminium Foil Roll for Battery Material Research
Specifications:
| Aluminum foil specification | ||
| Item | Type 1(T-AL-16) | Type 2(T-AL-12) |
| Width | customized | customized |
| Thickness | 16±1 um | 12±1um |
| Areal density | 42~46g/ m2 | 30~34g/m2 |
| With transverse surface density uniformity | ≤0.003 g/ 40×40 mm | ≤0.003 g/ 40×40 mm |
| The same volume of vertical surface density uniformity | ≤0.03 g/ 400×40 mm | ≤0.03 g/ 400×40 mm |
| High temperature oxidation resistance (200°C*30min) | No oxidation | No oxidation |
| Connect no | <2 | <2 |
| Chemistry content(Al) | >99.45% | >99.45% |
| Extensibility | <0.5% | <0.5% |
| Normal temperature Tensile strength kgf /mm2 | >180 | >140 |
| After 1200C baking 1h, Tensile strength kgf/mm2 | >160 | >120 |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
