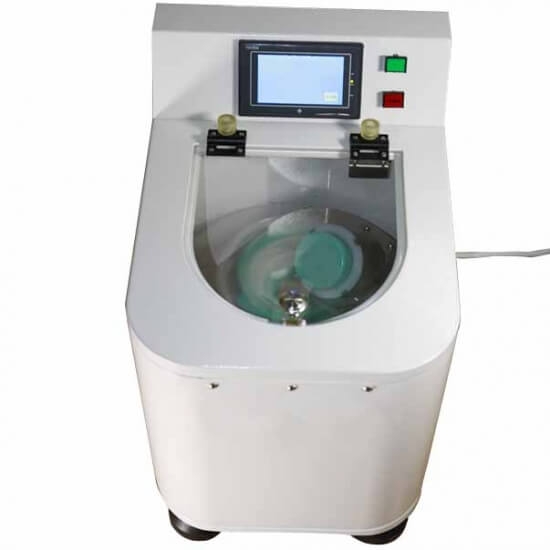

Louis@lithmachine.com900mL Vacuum Planetary Centrifugal Mixer with Two Jars
Product introduction
1. The material is evacuated while rotating and revolving in the container, and the stirring, dispersion and defoaming of high-viscosity materials can be achieved in a few minutes.
2. Spiral bevel gear drive: It has a stable and low-noise mechanical drive. The machine has low failure rate and long service life.
3. The overall arm is easy to maintain. Our company can first provide assembly accessories to ensure that customers work 24 hours a day without interruption.
4. Rodless stirring is pollution-free and does not damage the material properties.
5. Standard machine 0~2000RPM, high speed and high efficiency. Special requirements can be customized up to 3000RPM machine.
6. Various fixtures can be customized according to customer requirements to meet the requirements of customers using different packaging directly.
Applicable industries: semiconductor lighting (LED), photovoltaic, lithium batteries, capacitors, fine chemicals, etc.
Applicable materials: various particles (phosphor powder, chemical powder, metal micro-particles, etc.), liquid glue (silica gel, various adhesives, conductive glue, printing ink, etc.), metal paste (silver paste, aluminum paste, etc.,).
Features
a. Main shaft: Adopt Swiss ASSAB S136 mirror mold steel, after multiple heat treatment, the overall hardness reaches HRC62 degrees. The shaft is ground as a whole, and the full runout does not exceed 1 wire. The sealing surface is then mirror-polished to achieve a mirror-like effect with a surface roughness of 0.02um. The friction coefficient is extremely low, and the self-super wear-resisting wear of the sealing ring is very small, achieving high sealing performance with a long life. This is one of the magic weapons for many of our customers to maintain negative pressure above -98Kpa after using them for several years.
b. Sealing ring: It adopts the super wear-resistant sealing ring of German Bayer company, and the wear resistance capacity can reach the line speed of 40M/S. The line speed of our equipment is only 4M/S at 2000 rpm. The pressure can withstand 20KG/c㎡. This is the second magic weapon for many of our customers to keep the negative pressure above -98Kpa after using it for several years.
c. Vacuum pump: It adopts the international advanced technology to improve the forced oil circulation lubrication pump, which has good lubrication, small wear and long life. This is the third magic weapon for many of our customers to maintain negative pressure above -98Kpa after using it for several years.
d. Gear: It adopts the structure of automobile spiral bevel gear, which has stable operation, low noise and long service life.
e. Swivel arm: It adopts an integral swivel arm, which is all made of magnesium-aluminum 7075 imported from the United States, which ensures the accuracy and later stability of the product, and the center error is not greater than ±0.02. High interchangeability, the same type of machine arm can be interchanged freely, easy maintenance.
Parameter
|
Purpose: |
It is suitable for dispersing, mixing and defoaming of multi-component materials (silica gel, multi-component epoxy resin, etc.). |
|
Standard container: |
900ML (HDPE φ104×124) or 300ml (HDPE φ78*90); Syringes below 55CC; |
|
Maximum throughput: |
100g~400g; ≤500mL; |
|
Revolution: |
200~2000rpm stepless speed regulation, arbitrary input according to the actual needs of users, the adjustment accuracy is 1rpm; |
|
Rotation: |
Fixed speed ratio 0.7; |
|
Set time: |
0~3000S*5 (five steps in total), precision 1s; |
|
Parameter storage: |
5 groups; |
|
Vacuum degree: |
-100KPa, precision 0.1KPa; |
|
Vacuum source: |
Built-in two-stage advanced vacuum pump 240L/min (=4L/sec=14~16m²/hour);Absolute limit pressure (partial pressure 5*10-2Pa and 0.05Pa);Absolute limit pressure (full pressure 4*10-1Pa and 0.4Pa) |
|
Vacuum Settings: |
Vacuum independent switch, with vacuum delay function, vacuum degree can be adjusted arbitrarily; |
|
Bearing: |
Japan NSK bearing; |
|
Control System: |
Human-machine dialogue, Chinese interface, touch screen operation; |
|
Balance adjustment: |
Double cup configuration balance; |
|
Transfer method: |
Gear drive; |
|
Working principle: |
Public rotation wingless centrifugal gravity method; |
|
Alarm system: |
Public rotation wingless centrifugal gravity method; |
|
Safety protection: |
During operation, the upper cover is locked, and when the upper cover is opened, it stops working; |
|
Applicable temperature and humidity: |
10~40 ℃; 20~80%RH (if there is no foggy moisture, it is enough); |
|
Voltage: |
AC220V±5%; 1-Phase; 50~60Hz; |
|
Power: |
The rated power of the host is 1100w, including the vacuum pump; |
|
Dimensions: |
L690*W580*H610mm; |
|
Host weight: |
120kg |
|
Features: |
Rotation and revolution motion can generate a centrifugal gravity of up to 800G, strong dispersion and de-foaming; no spiral blades, realize stirring and dispersion in the container; no need to clean, no pollution to materials; no damage to the properties of materials (especially fibrous materials); Human-computer interaction, easy to operate; ultra-small, ultra-light, ultra-quiet optimized design. |
