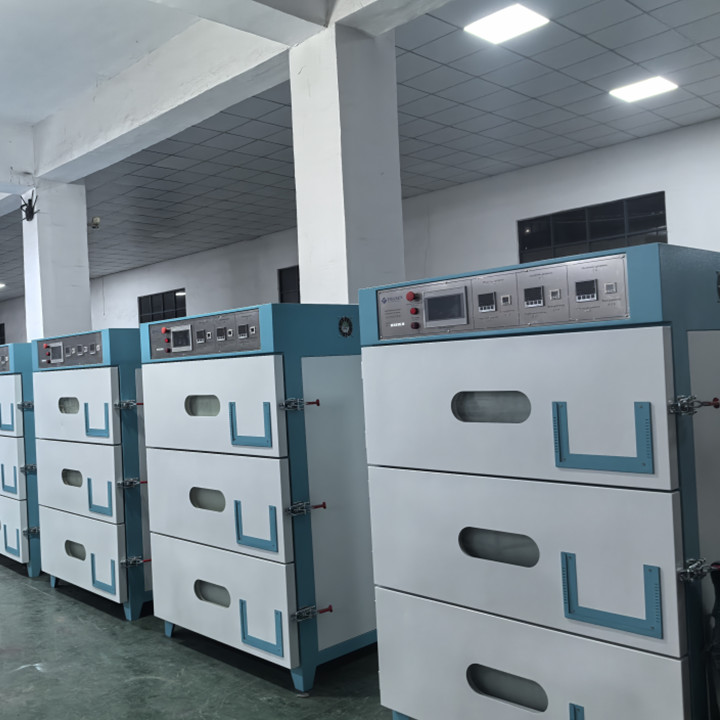

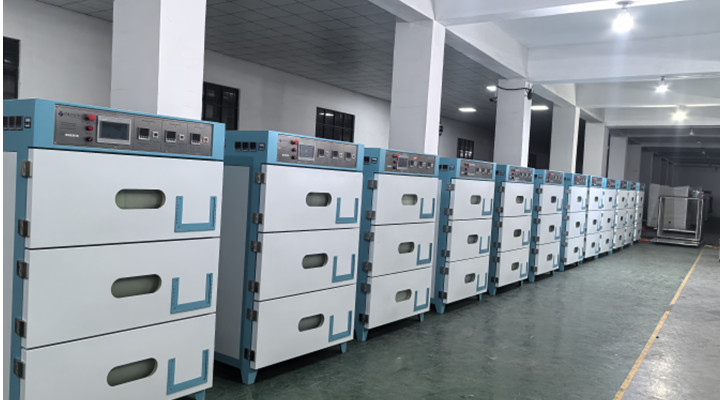

LITH-BE-JK-03 is a floor stand vacuum drying/degassing/bake-out oven with large capacity.
ADVANCED FEATURES:
1. Tri-level individual shelf heating modules provide ideal temperature uniformity, heat-up efficiency, and spacing for vacuum drying, degassing and bake-out applications.
2. PLC control enables automatic cycling conditions such as vacuuming, backfill with an inert gas, heating to the set temp., dwell, timing and pressure control.
3. Local temperature measuring for each heated shelf. The actual temperature of each shelf can be seen separately on the temperature controller.
SPECIFICATIONS:
Structure
1. Total capacity: 430 liters (143 liters per level)
2. Inner Chamber size: W300mm x D800mm x H600mm per level
3. A good vacuum seal is achieved by silicone door gasket and positive latch door
4. High-quality glass wool insulation prevents heat loss and maintains a relatively low surface temp. < 40°C during the work
5. Interior material: Stainless Steel 304 (3mm thick)
6. Exterior material: Cold rolled steel plate (2mm thick)
Working Voltage
Three Phase AC 380V
Power Consumption
13.5KW
Heating Rates
RT-80°C, less than 20 minutes (unloaded)
Thermocouple
K type
Working Temperature
RT ~200°C
Temperature Controller
1. PID precise temperature controls with built-in over-temperature protection
2. Temperature uniformity: +/-2°C @ 85°C
3. Temperature Stability: +/-1°C of the setpoint
Vacuum Pump (optional)
Ultimate Vacuum Level: 750 millitorrs.
Gas Inlet/Vacuum Port
1. Features 1/4" tube fitting for chamber purging with inert gas
2. Vacuum Port: KF-25
Compliance
CE Certified
Warranty
One years limited warranty with lifetime technical support
Dimensions
Oven: 1850 x 1420 x 890 mm (L x W x H)
Net Weight
700kg
Application Notes
Such an oven is an excellent tool for the larger volume of battery electrode drying.
