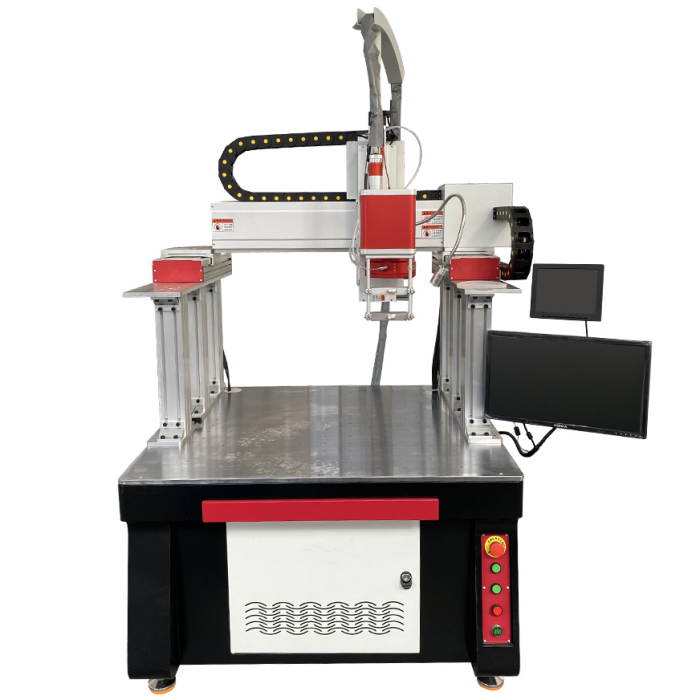

3000W Fiber Laser Galvanometer Welding Machine for Prismatic Cell Assembly

3000W Fiber Laser Galvanometer Welding Machine for Prismatic Cell Assembly

  • ItemNo :

    LITH-HY-C3000W
  • MOQ :

    1
  • Port :

    Xiamen Port
  • Compliance:

    CE
  • Warranty:

    2 years
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details

3000W Fiber Laser Galvanometer Welding Machine for Prismatic Cell Assembly



Ⅰ、Introduction:

Suitable for laser welding of new energy lithium batteries. Fast welding speed, precise welding position, and high repeatability accuracy of 0.05mm.

Equipped with servo motor, large spot galvanometer, stable laser performance gantry tooling.

The welding speed is fast, the heat affected zone is small, and it can effectively improve the accuracy of the workpiece. The weld seam is smooth, free of impurities, uniform and dense, and does not require manual polishing.

Can precisely control the high-precision positioning of focused light points. Improve welding efficiency, reduce working hours, and lower production costs.


Ⅱ、Equipment features:

Equipped with servo motor, large spot galvanometer, stable laser performance, gantry type fixture with fast welding speed and small heat affected zone, it can effectively improve the accuracy of the workpiece. The weld seam is smooth and free of impurities, uniform and dense, and does not require manual polishing. It can precisely control the focusing light point for high-precision positioning, improve welding efficiency, reduce working hours, and lower production costs.


 Ⅲ、Fiber optic series welding machine configuration:

Model

LITH-HY-C3000W

Brand

Laser system

Continuous laser –C3000W

LITH

Transmission mechanism

x10 meter fiber optic cable

LITH

Welding head

Fiber optic galvanometer welding head

LITH

Control mode

Industrial computer, specialized galvanometer welding software

LITH

Locate mode

Semiconductor red light, CCD monitoring and positioning

LITH

Sports mechanism

Gantry X/Y/Z (left and right, front and rear, upper and lower) axis motor guide rail

800mm*600mm*400mm

LITH

Gas Shield

Synchronous argon or nitrogen protection

LITH

Refrigeration system

Integrated constant temperature machine internal circulation cooling water

Bingyue

Cabinet

Main machine:1580*900*1600mm

Water tank:530*450*700mm

LITH


Technical parameters:

Model

LITH-HY-C3000W

Maximum laser power

3000W

Output center wavelength

1070±10

Welding method

Continuous, spot welding

Laser welding seam

0.2-5mm

Maximum welding depth

5mmStainless steel

Fiber Length

10m

Host size

1.58*0.9*1.6m

Working voltage

380V/32A

Operation temperature

0-45℃

Weight

360KG



Sample Display:




Laser Welding Machine

Laser Welding Machine




Battery Pack Assembly line






PACKAGE:

     1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

     2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

     3 Responsible for the damage during the shipping process, will change the damage part for you for free.



DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
