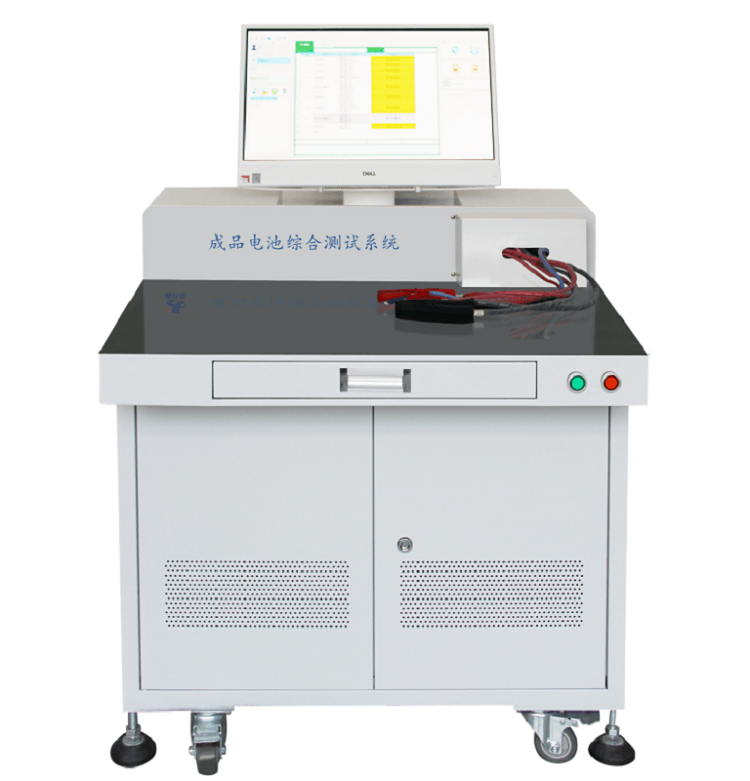

Louis@lithmachine.com1-24 series BMS Tester With Computer Protection Panel Tester for Energy Storage Battery Pack
FEATURE
This machine is designed for test protecting voltage of over charge, recovery voltage of over charge, protecting voltage of over discharge, recovery voltage of over discharge, protecting current of over current, delayed performance of over current protecting total current self consumption 1~24 series power battery protection board tester.
|
Parameter |
Test Range |
Accuracy |
|
Number of Testing Series |
1-24 series optional |
|
|
Voltage Reference |
Ternary Battery:3.8V Lithium Battery: 3V |
|
|
Overcharge/Overdischarge Protection Voltage |
0.5-5V |
±5mV |
|
Overcharge/Overdischarge Voltage |
0.5-5V |
±5mV |
|
Overcharge Protection Current |
0-40A |
±0.1A |
|
Over-discharge Protection Current |
0-120A |
±0.1A |
|
Equilibrium Open Voltage |
0.5-5V |
±5mV |
|
Equilibrium Real-time Current |
0-200mA |
±1mA |
|
Overcurrent Protection Delay |
0-15S |
±1mS |
|
Overcharge/Overdischarge Protection Delay |
0-20S |
±1mS |
|
Single-section Self-consuming Power |
0-500uA |
±1uA |
|
Internal Loop Resistance |
0-500mΩ |
±1mΩ |
|
Short Circuit Protection (more than 6 series) |
0-9999us |
±1us |
|
Supply Voltage |
220VAC |
|
|
Maximum Power |
600W |
|
|
Current Level |
60-120A |
|
|
Machine Size |
420*430*220mm |
Related Machine
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
